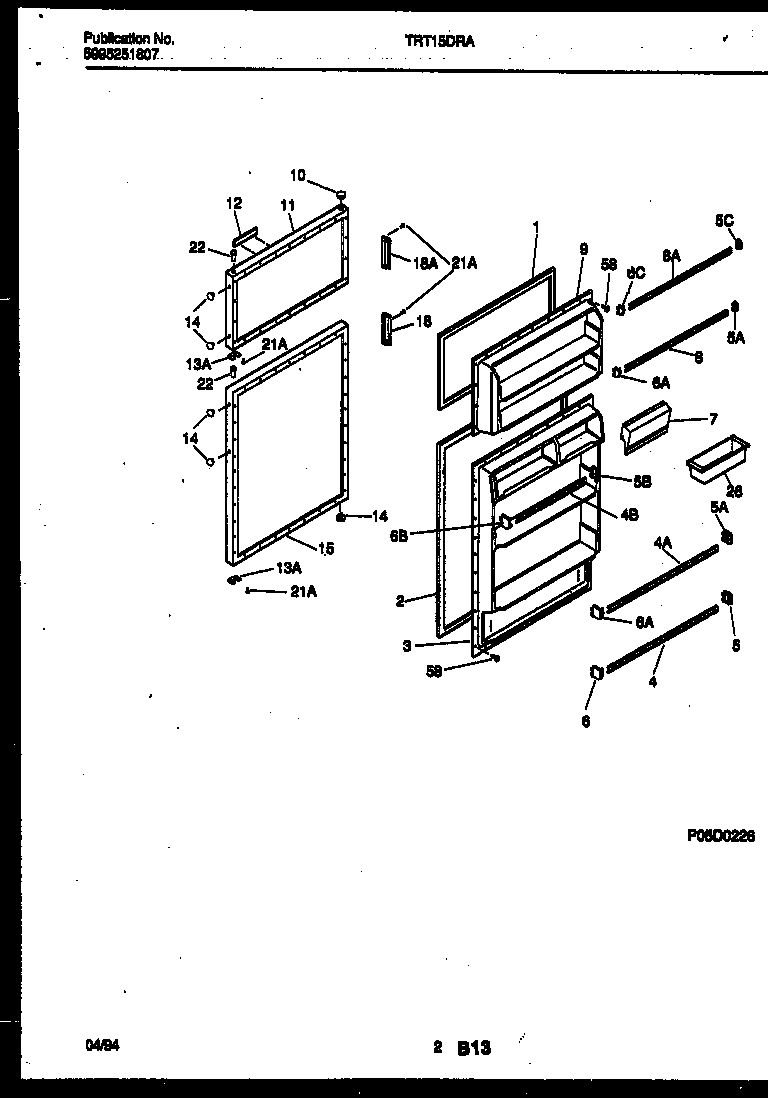

TRT15DRAW0 02 – DOOR PARTS

TRT15DRAW0 02 – DOOR PARTS

Written by

in

TRT15DRAW0 02 – DOOR PARTS

Products

PositionProduct
*99110INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303284098
4BWCI 5303300047
4A215366002 Frigidaire Refrigerator Door Wide Rack
5BSUPPORT-DOOR RACK, EXTENDS .56“, RH
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5C3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
6C3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS .56“, LH
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303300053
8AWCI 5303300046
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 3916563
12AWCI 215220317
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BFRAME – NAMEPLATE,WHITE
12WCI 215754301
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 3916558
18AWCI 5303273081
18WCI 5303273079
21AWCI 5308011745
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
