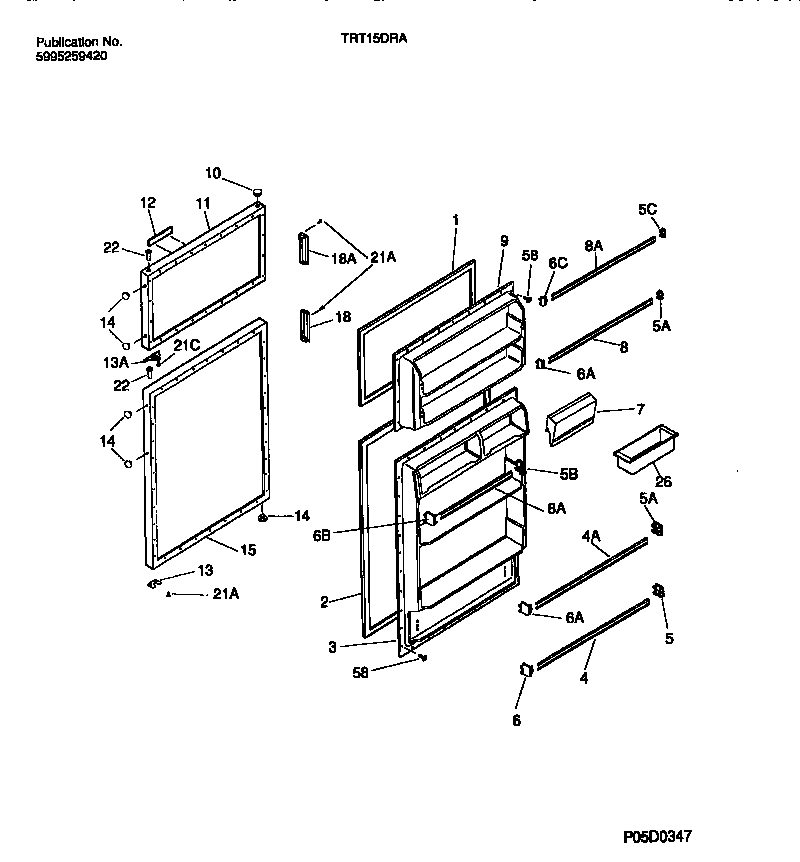

TRT15DRAW1 02 – DOOR SECTIONadmin2025-04-26T09:44:53+00:00TRT15DRAW1 02 – DOOR SECTION
Products
| Position | Product |
|---|
| *47080 | INSULATION |
| 1 | GASKET-FRZR DOOR, MAGNETIC, WHITE |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303284098 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5A | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5B | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 5 | WCI 3206150 |
| 5C | 3206165 Frigidaire Bar Endcap Right Hand |
| 6A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6C | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6B | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 6 | WCI 3206151 |
| 7 | DOOR-DAIRY |
| 8A | WCI 5303300046 |
| 9 | WCI 5303276517 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 3916563 |
| 12C | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 12B | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12A | WCI 215220317 |
| 12 | WCI 215754301 |
| 13A | WCI 218249001 |
| 13 | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 3916558 |
| 18 | WCI 5303273079 |
| 18A | WCI 5303273082 |
| 18A | WCI 5303283081 |
| 21A | WCI 21851900 |
| 21C | 218252201 Frigidaire Refrigerator Screw |
| 22 | BEARING-HINGE |
| 26 | WCI 3204522 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
