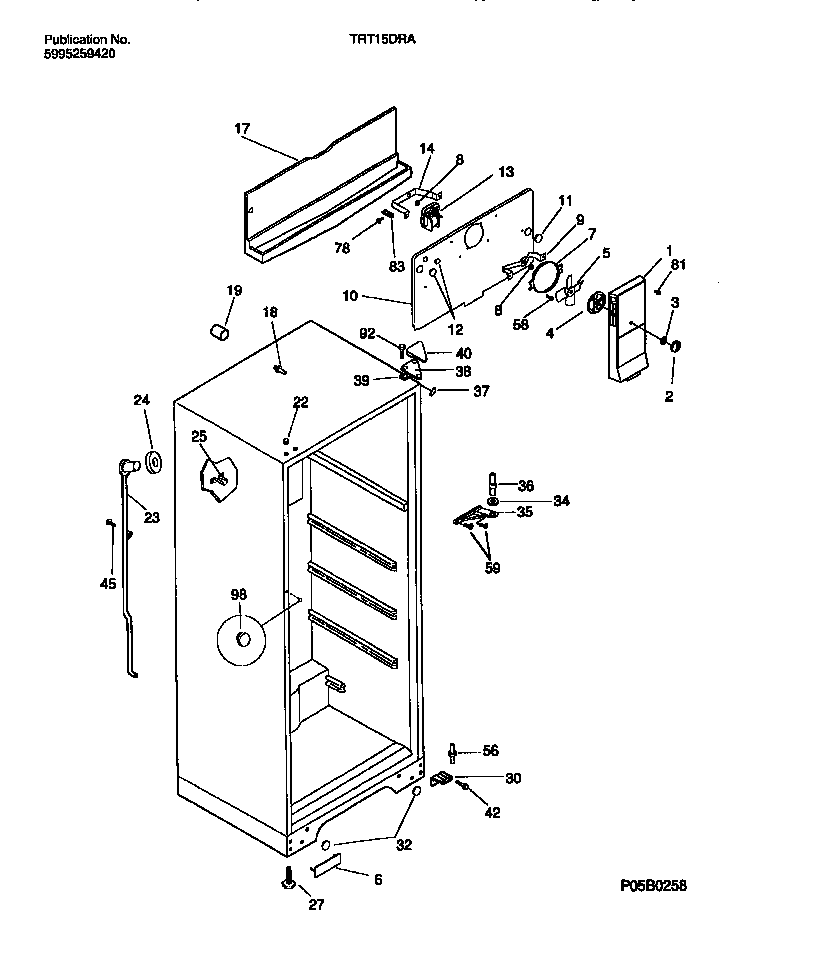

TRT15DRAW1 03 – CABINET W/FAN ASSY

Products

Position	Product
*47081	SKID PAD, REAR CAB BASE (NI)
*47082	PLUG, BUTTON, CABINET LINER (NI)
*47084	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 5303300050
2	WCI 5303299978
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12A	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
27	SCREW-LEVELING, (2)
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
30B	SHIM, LOWER HINGE (NI)
30	WCI 3206136
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE, LIGHT GREY
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206101
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 2181888000
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
