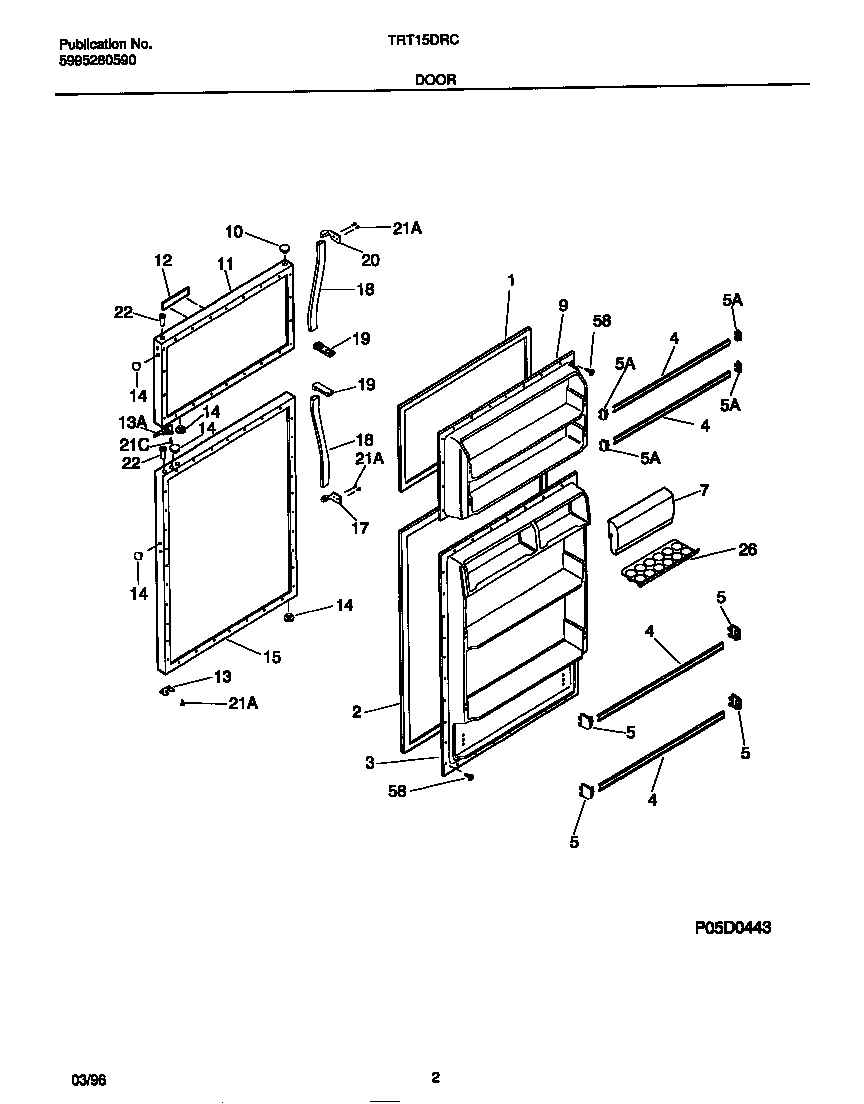

TRT15DRCW2 02 – DOOR

TRT15DRCW2 02 – DOOR

Written by

in

TRT15DRCW2 02 – DOOR

Products

PositionProduct
*81800INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7AWCI 218287815
7BWCI 5303001380
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917654
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 218531501
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12FRAME – NAMEPLATE,WHITE
13DOOR STOP, REFR SECTION
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917684
17HANDLE END
18WCI 5303015111
18WCI 5303301465
19WCI 215365000
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B131420300 Frigidaire Screw
21A218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
