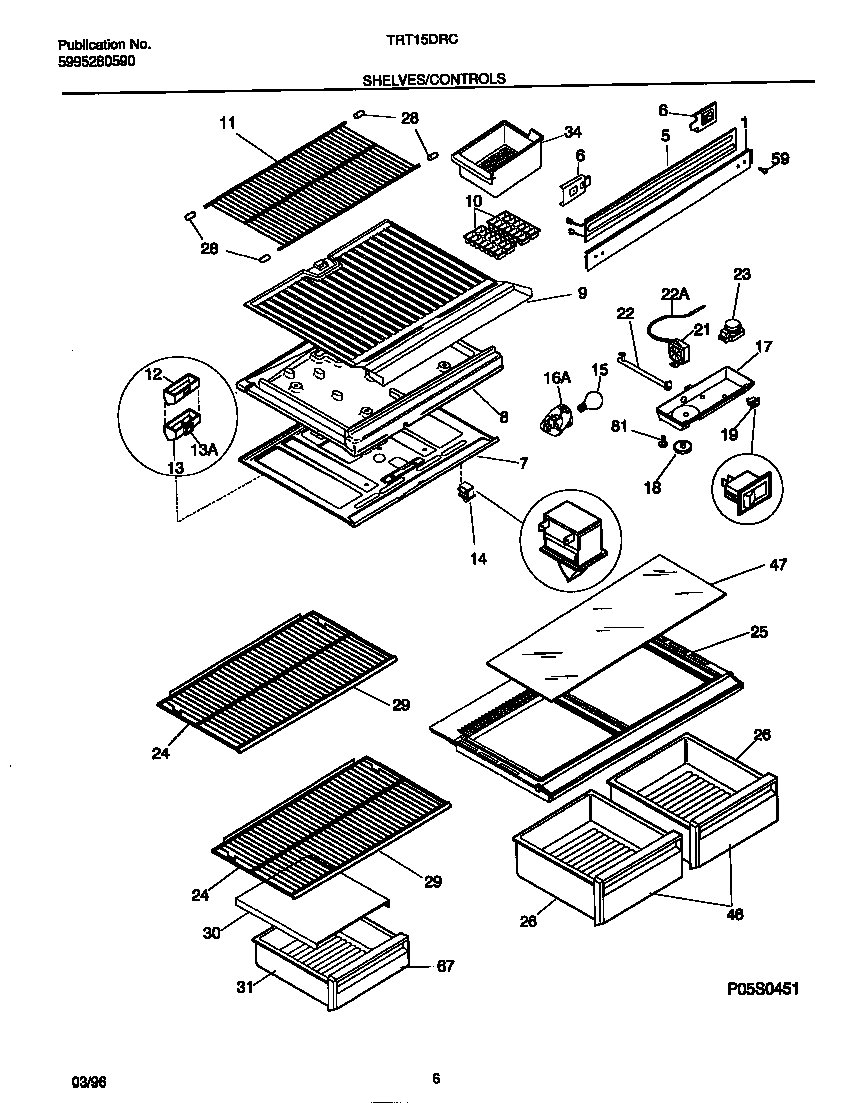

TRT15DRCW2 04 – SHELVES/CONTROLS

TRT15DRCW2 04 – SHELVES/CONTROLS

Written by

in

TRT15DRCW2 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7BWCI 5303001380
7AWCI 3206185
8AWCI 3206186
8B3205266 Frigidaire Refrigerator Edge Protector
8CWCI 3018900
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12AWCI 218630800
12B5303001449 Frigidaire Refrigerator Seal
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303305486
21BWCI 5303001260
22WCI 3018891
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 218272501
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 218366105
30WCI 5303285319
31WCI 3206209
34WCI 3018945
46WCI 5303310721
47WCI 215723587
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5303310723
815304455650 Frigidaire Refrigerator Screw
