TRT15DRCY0 02 – DOOR

TRT15DRCY0 02 – DOOR

Written by

in

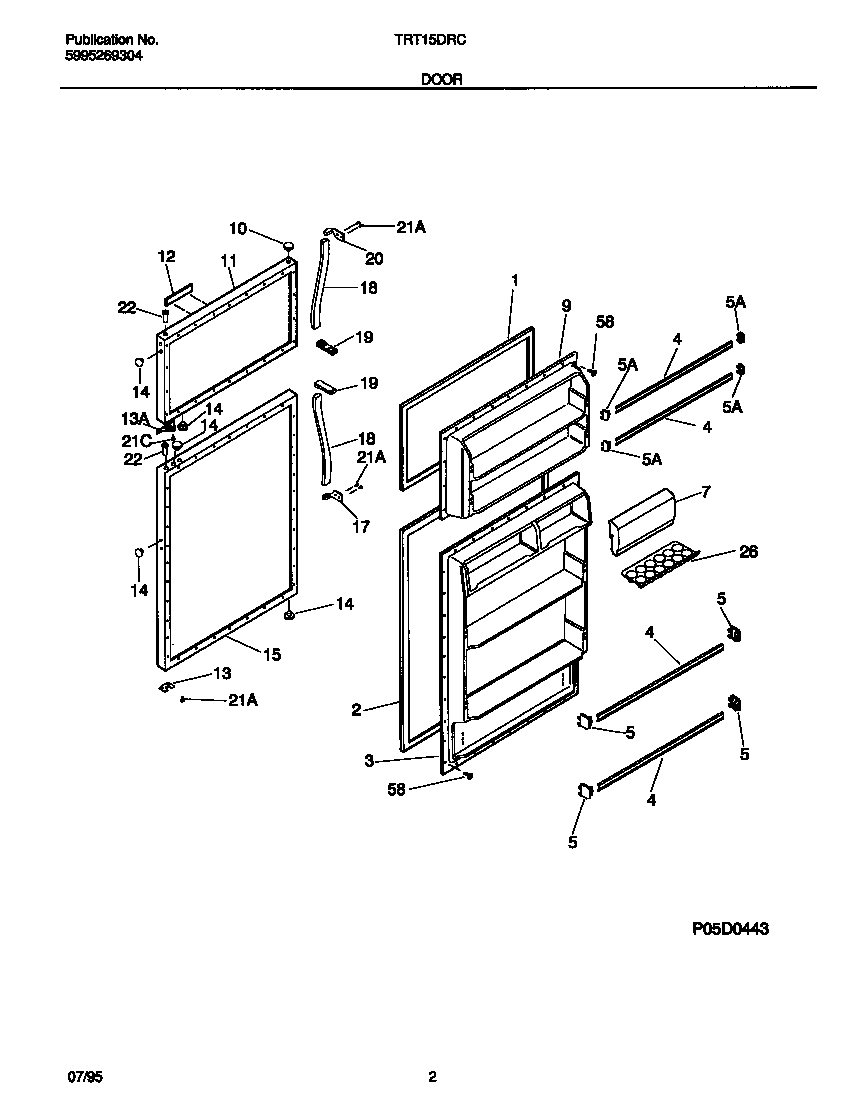

TRT15DRCY0 02 – DOOR

Products

PositionProduct
*04800INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 218287815
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917685
12WCI 218531502
13DOOR STOP, REFR SECTION
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917655
17HANDLE END
18WCI 5303015111
18AINSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED)
19WCI 215365000
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
