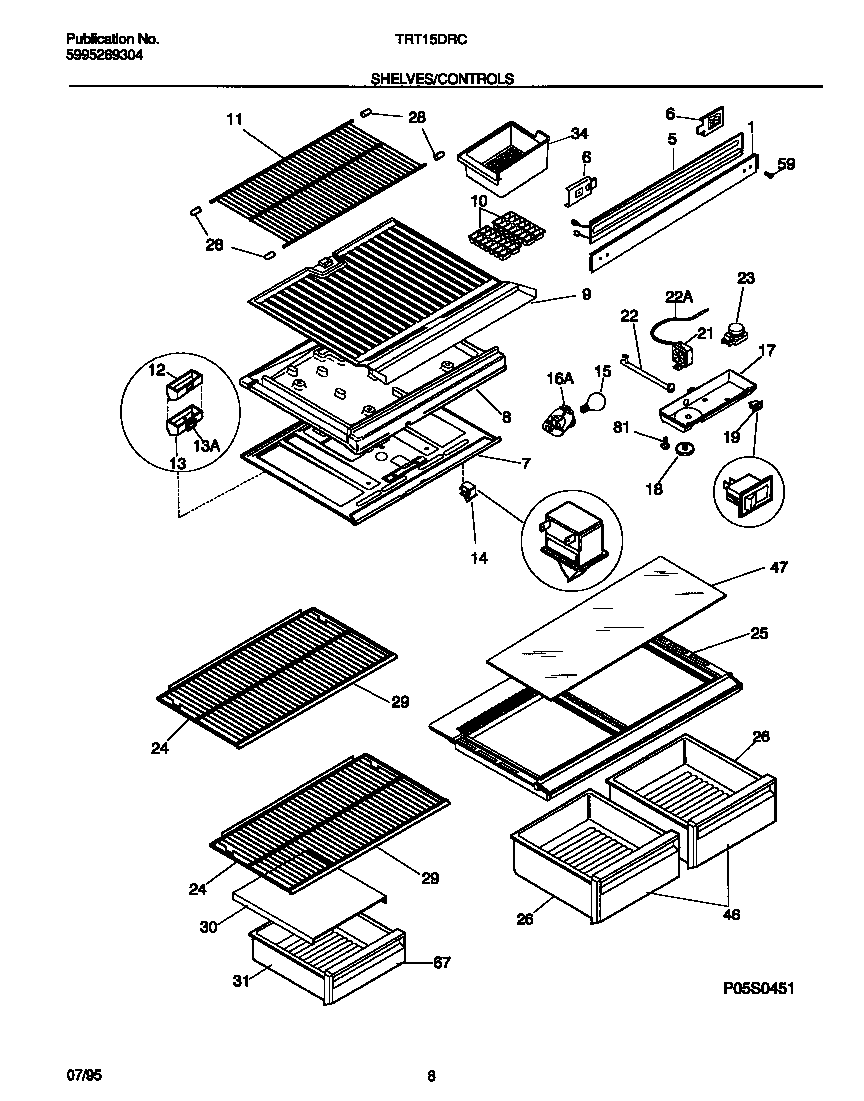

TRT15DRCY0 04 – SHELVES/CONTROLS

TRT15DRCY0 04 – SHELVES/CONTROLS

Written by

in

TRT15DRCY0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252502
5WCI 218271401
6WCI 218279800
7WCI 3206185
7AWCI 5303001380
8BWCI 3018900
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303307349
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303305486
22WCI 3018891
22ATUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 218272501
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 218366105
30WCI 5303285319
31WCI 3206209
34WCI 3018945
46WCI 5303310721
47WCI 215723587
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5303310723
815304455650 Frigidaire Refrigerator Screw
