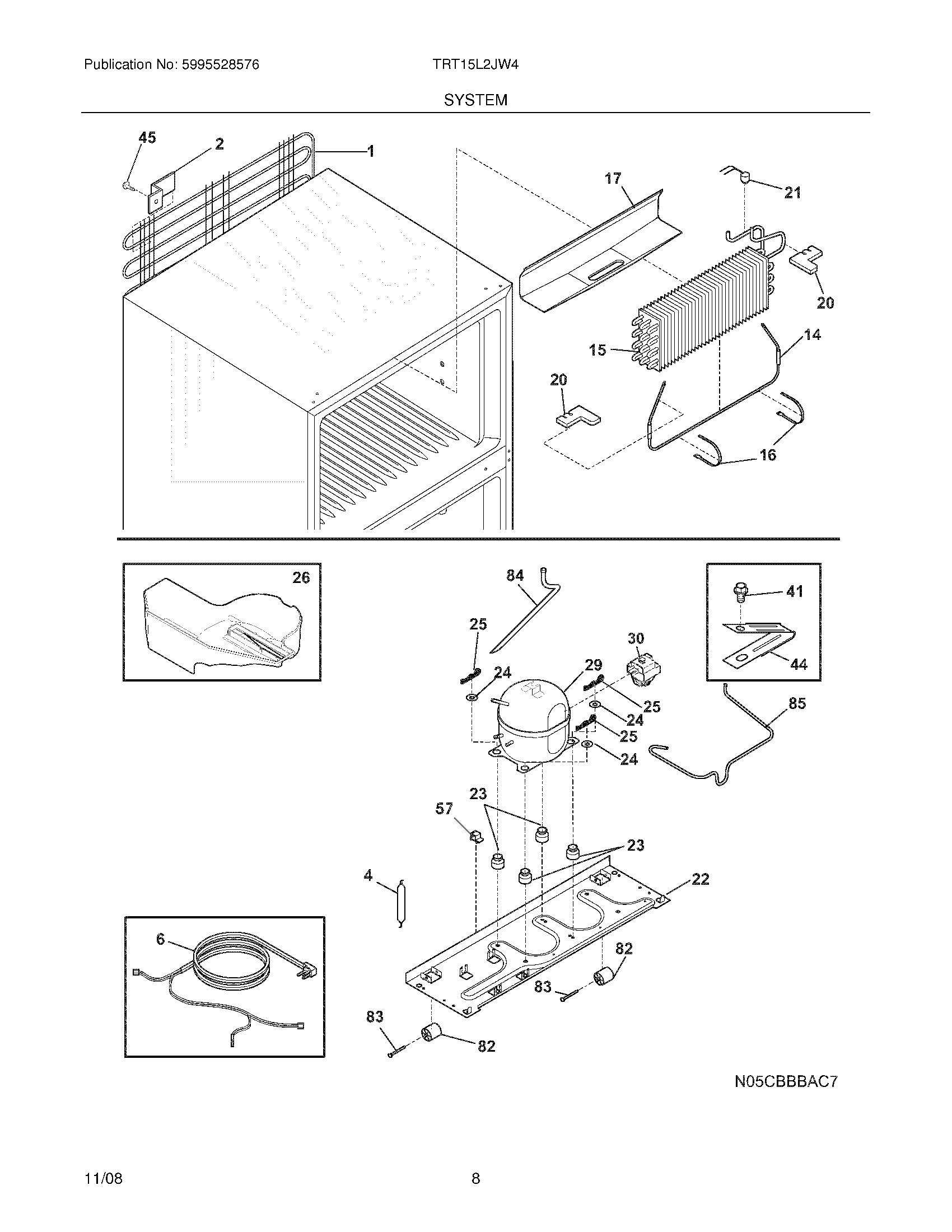

TRT15L2JW4 09 – SYSTEM

Products

PositionProduct
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 5303918234
NI240388701 Frigidaire Refrigerator Wiring Harness
NI240396801 Frigidaire Refrigerator Tube Clamp
NIWCI 5304406721
NISPACER-COND TUBE,BLACK
NI218252201 Frigidaire Refrigerator Screw
NI241500305 Frigidaire Refrigerator Screw
1WCI 241927302
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 241678801
14242044007 Frigidaire Refrigerator Defrost Heater
155303918275 Frigidaire Refrigerator Evaporator Kit P1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801302 Frigidaire Refrigerator Trough-Drain
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665605 Frigidaire Refrigerator Base Compressor
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26WCI 240598501
295304507765 Frigidaire Refrigerator Compressor Kit
305304505700 Frigidaire Relay Combo Kit
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
455304455650 Frigidaire Refrigerator Screw
57240542601 Frigidaire Clip-WIRING Harness
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84WCI 241949901
85WCI 241844601
