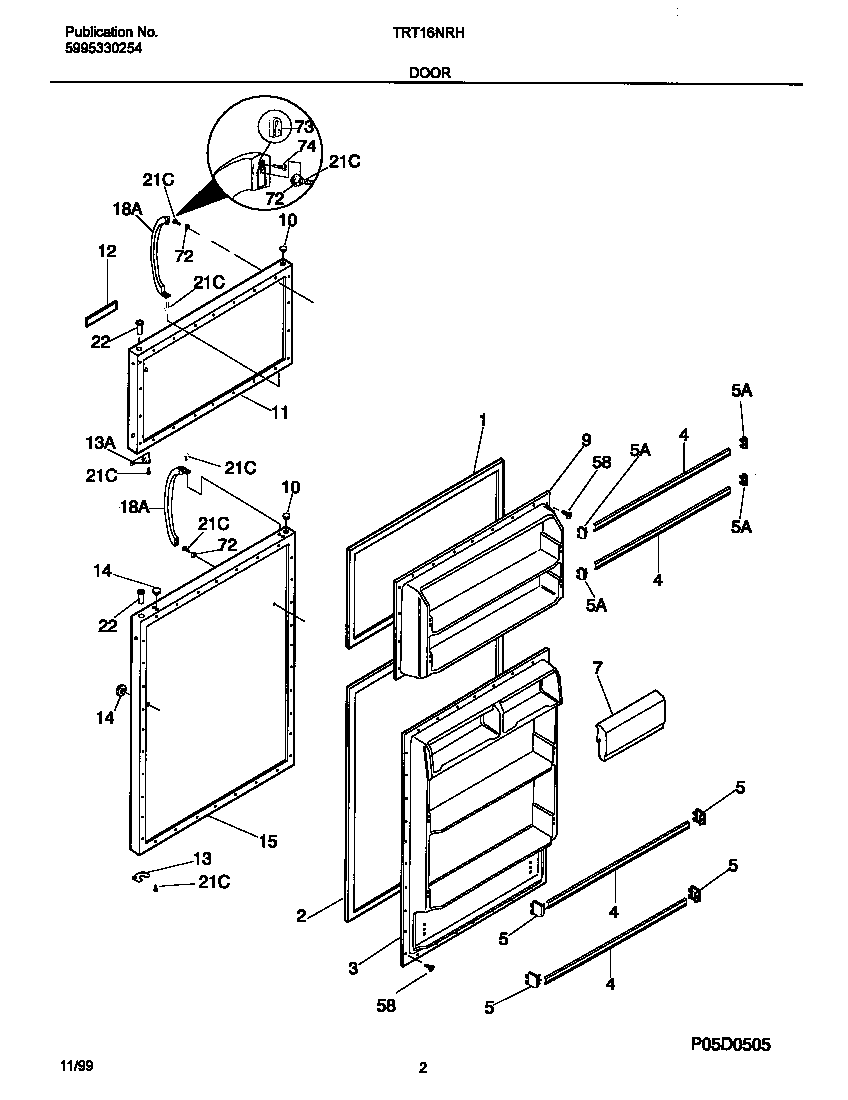

TRT16NRHW1 02 – DOORS

TRT16NRHW1 02 – DOORS

Written by

in

TRT16NRHW1 02 – DOORS

Products

PositionProduct
*30641WCI 215220346
*30643INSULATION
*30642MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917814
12WCI 218439134
12WCI 218428201
13WCI 218249001
13WCI 218800300
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917838
18WHITE DOOR HANDLE
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
