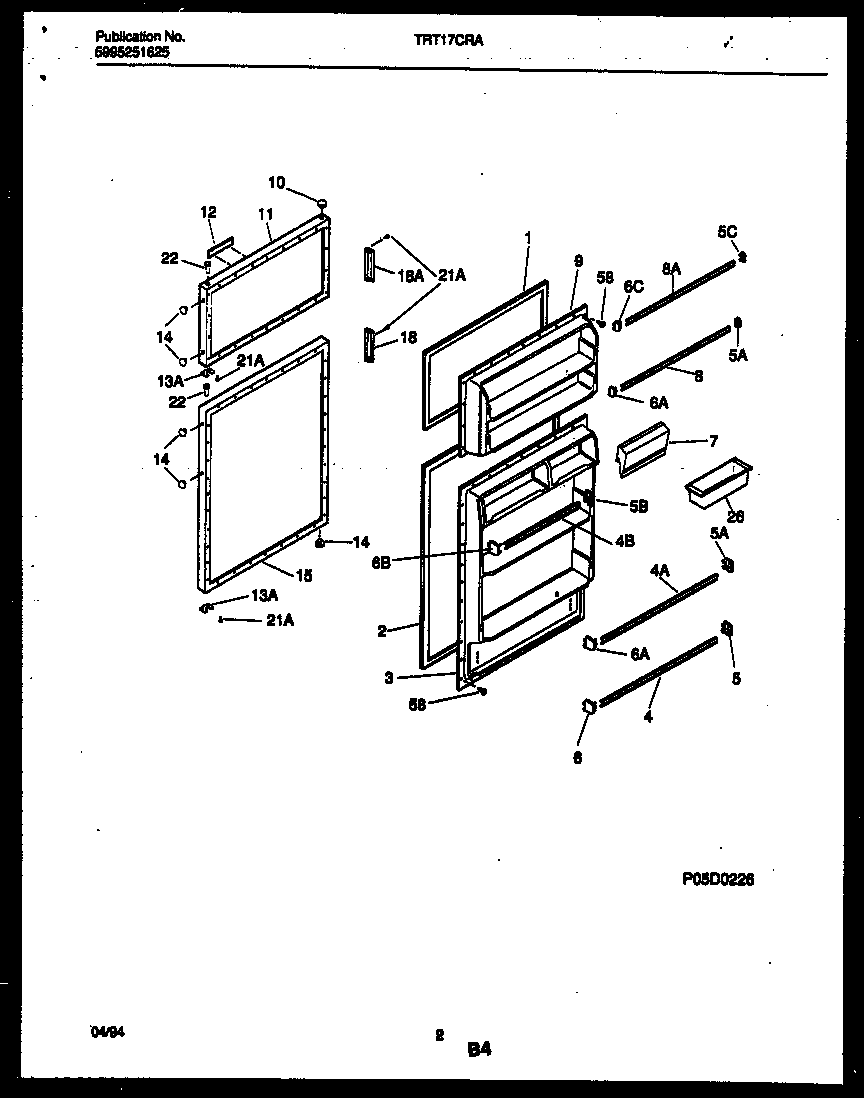

TRT17CRAD0 02 – DOOR PARTS

TRT17CRAD0 02 – DOOR PARTS

Written by

in

TRT17CRAD0 02 – DOOR PARTS

Products

PositionProduct
*99021INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303284098
4BWCI 5303300047
4A215366002 Frigidaire Refrigerator Door Wide Rack
5BSUPPORT-DOOR RACK, EXTENDS .56“, RH
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5C3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6BSUPPORT-DOOR RACK, EXTENDS .56“, LH
6C3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
7WCI 5303300053
8AWCI 5303300046
9WCI 5303276517
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11FREEZER DOOR-ALMD
12AWCI 215220318
12BWCI 215366311
12WCI 215754311
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15REFRIGERATOR DOOR-ALMD
18AWCI 5303273082
18WCI 5303273080
21AWCI 5308011745
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
