TRT17CRAD1 02 – DOOR

TRT17CRAD1 02 – DOOR

Written by

in

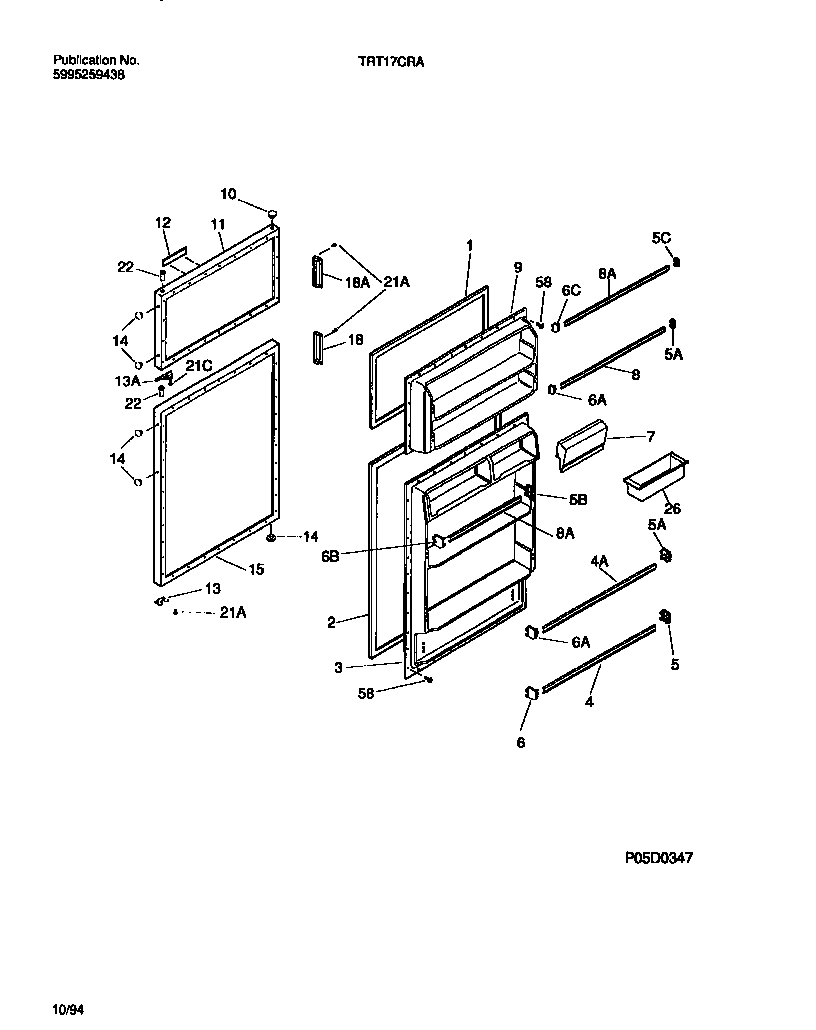

TRT17CRAD1 02 – DOOR

Products

PositionProduct
*37400INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303284098
4215366002 Frigidaire Refrigerator Door Wide Rack
5WCI 3206150
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5BSUPPORT-DOOR RACK, EXTENDS .56“, RH
5C3206165 Frigidaire Bar Endcap Right Hand
6C3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6BSUPPORT-DOOR RACK, EXTENDS .56“, LH
6WCI 3206151
7WCI 5303300053
8AWCI 5303300046
9WCI 5303276517
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11FREEZER DOOR-ALMD
12WCI 215754311
12AWCI 215220318
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15REFRIGERATOR DOOR-ALMD
18AWCI 5303273082
18WCI 5303273080
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
58SCREW, HEX WASHER HEAD, 8-15(A) X 1/2, SPECIAL
