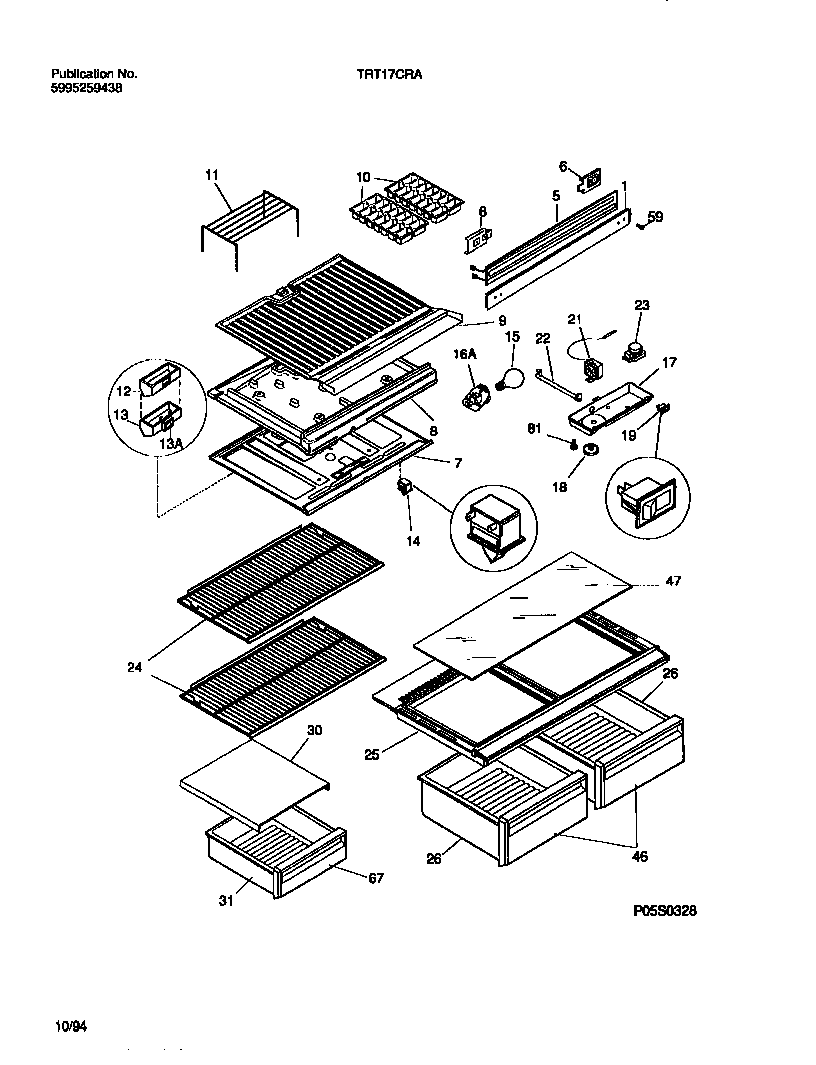

TRT17CRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

TRT17CRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

TRT17CRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*37405LOCK-SHELF TRIM, REAR
*37404CLIP-CANTILEVER SHLF
1WCI 218430711
5WCI 218271401
6WCI 218279800
7WCI 5303001380
7WCI 3206185
8WCI 3206186
8BWCI 3018900
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12ADEFLECTRO, AIR, W/SEAL
125303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17NUT, ANCHOR (NI)
17WCI 3206130
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303018894
21WCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, CANTILEVER, FULL WIDTH, WIRE
25WCI 3206183
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 5303300052
31WCI 3206351
36AFRAME-SHELF, CANTILEVER, HALF WIDTH
36WCI 5303280813
37RETAINER-GLASS, (3) (NON-ILLUSTRATED)
42WCI 5303282330
42AWCI 5303282331
43WCI 215723508
44TRIM-SHELF, 11.31“, REAR, SNAP-ON
46WCI 5303300055
47WCI 5303271945
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5303300054
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
