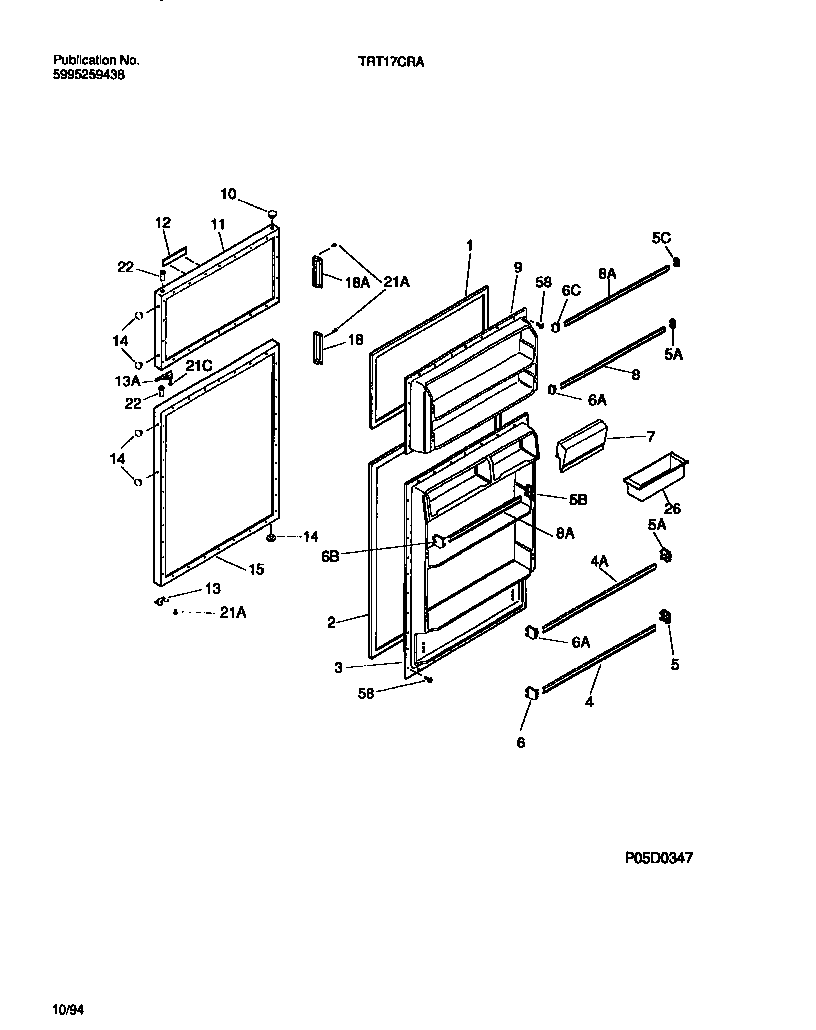

TRT17CRAW1 02 – DOOR

TRT17CRAW1 02 – DOOR

Written by

in

TRT17CRAW1 02 – DOOR

Products

PositionProduct
*37400INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303284098
4215366002 Frigidaire Refrigerator Door Wide Rack
5BSUPPORT-DOOR RACK, EXTENDS .56“, RH
5C3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6BSUPPORT-DOOR RACK, EXTENDS .56“, LH
6C3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
7WCI 5303300053
8AWCI 5303300046
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 3916563
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 215754301
12AWCI 215220317
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 218249001
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 3916558
18AWCI 5303273081
18WCI 5303273079
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
58SCREW, HEX WASHER HEAD, 8-15(A) X 1/2, SPECIAL
