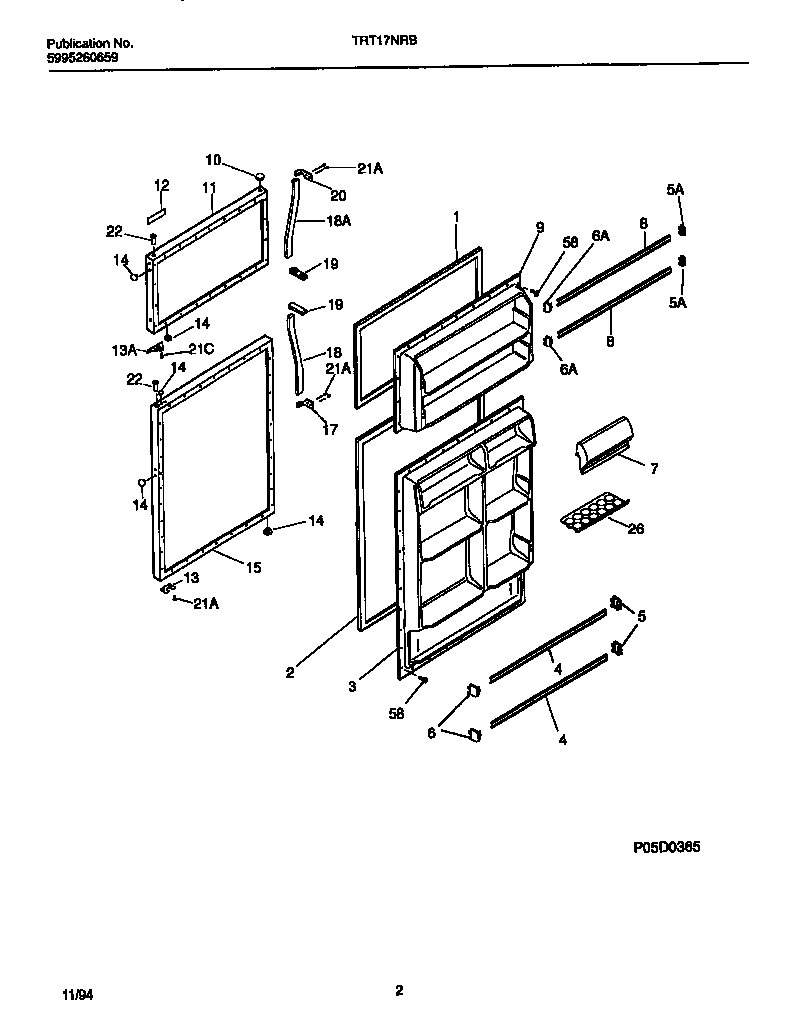

TRT17NRBD0 02 – DOOR SECTION

TRT17NRBD0 02 – DOOR SECTION

Written by

in

TRT17NRBD0 02 – DOOR SECTION

Products

PositionProduct
*37360INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304570
8WCI 215806315
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917475
12WCI 215366311
12BWCI 215220318
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917477
17HANDLE END
18AWCI 5303292745
18AWCI 5303271858
18WCI 5303015111
18INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED)
18AWCI 5303201377
18WCI 5303301466
19WCI 215365000
20HANDLE END
21AWCI 5308011745
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
