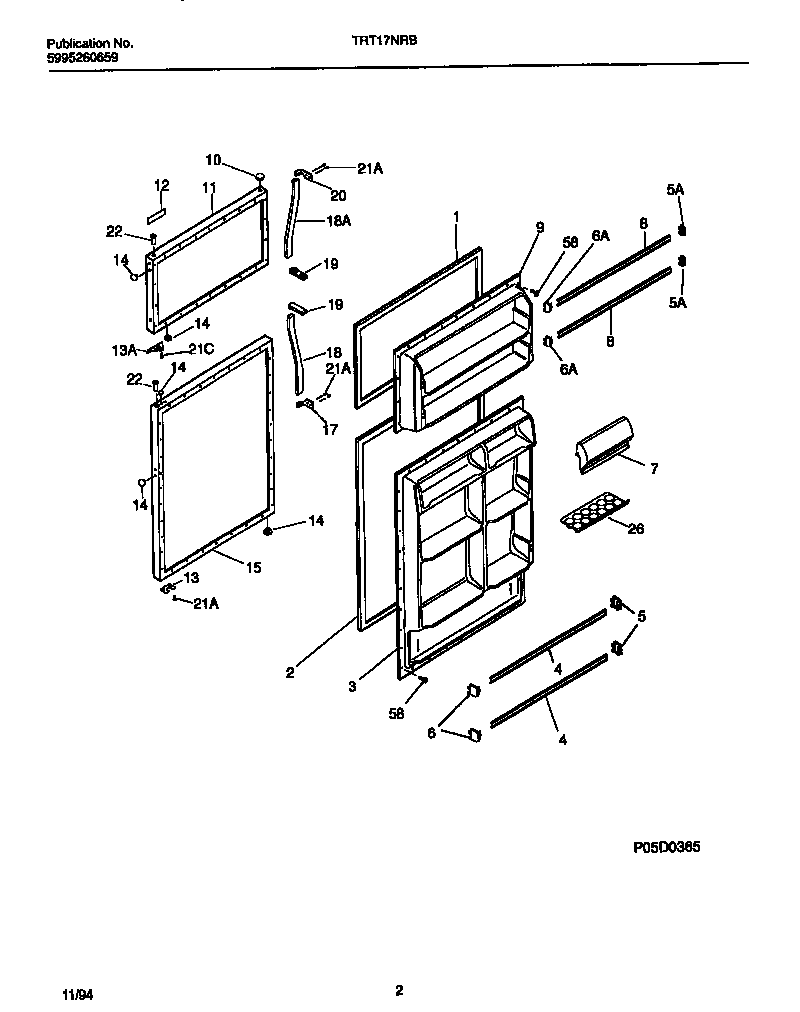

TRT17NRBW0 02 – DOOR SECTION

TRT17NRBW0 02 – DOOR SECTION

Written by

in

TRT17NRBW0 02 – DOOR SECTION

Products

PositionProduct
*37360INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
7WCI 5303304570
8WCI 215806315
9WCI 5303290026
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917474
12FRAME – NAMEPLATE,WHITE
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BWCI 215220317
13DOOR STOP, REFR SECTION
13AWCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917476
17HANDLE END
18WCI 5303301465
18AWCI 5303292745
18WCI 5303015111
18AWCI 5303201377
18AWCI 5303301464
18WCI 5303301466
19WCI 215365000
20HANDLE END
21AWCI 5308011745
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
