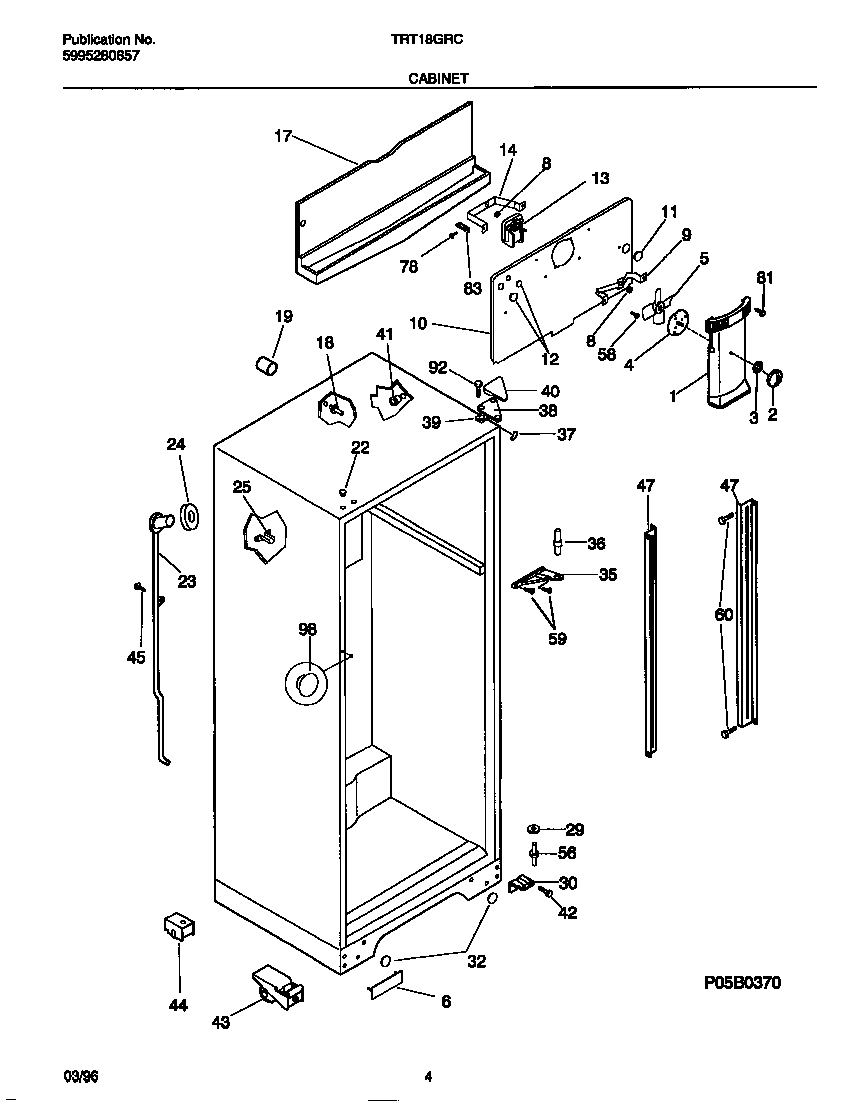

TRT18GRCW1 03 – CABINET

TRT18GRCW1 03 – CABINET

Written by

in

TRT18GRCW1 03 – CABINET

Products

PositionProduct
*244025303321319 Frigidaire Refrigerator White Touch Up Paint
*24403PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303307350
2WCI 5303307351
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29BWCI 5308011326
29AWASHER, .34 X .62 X .05, NYLON
30CSHIM, LOWER HINGE (NI)
30AWCI 3206136
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206101
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41A5304509705 Frigidaire Refrigerator Grommet
41C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43DWCI 5308009790
43BWCI 5308009760
43CBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43AWCI 5300188673
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
