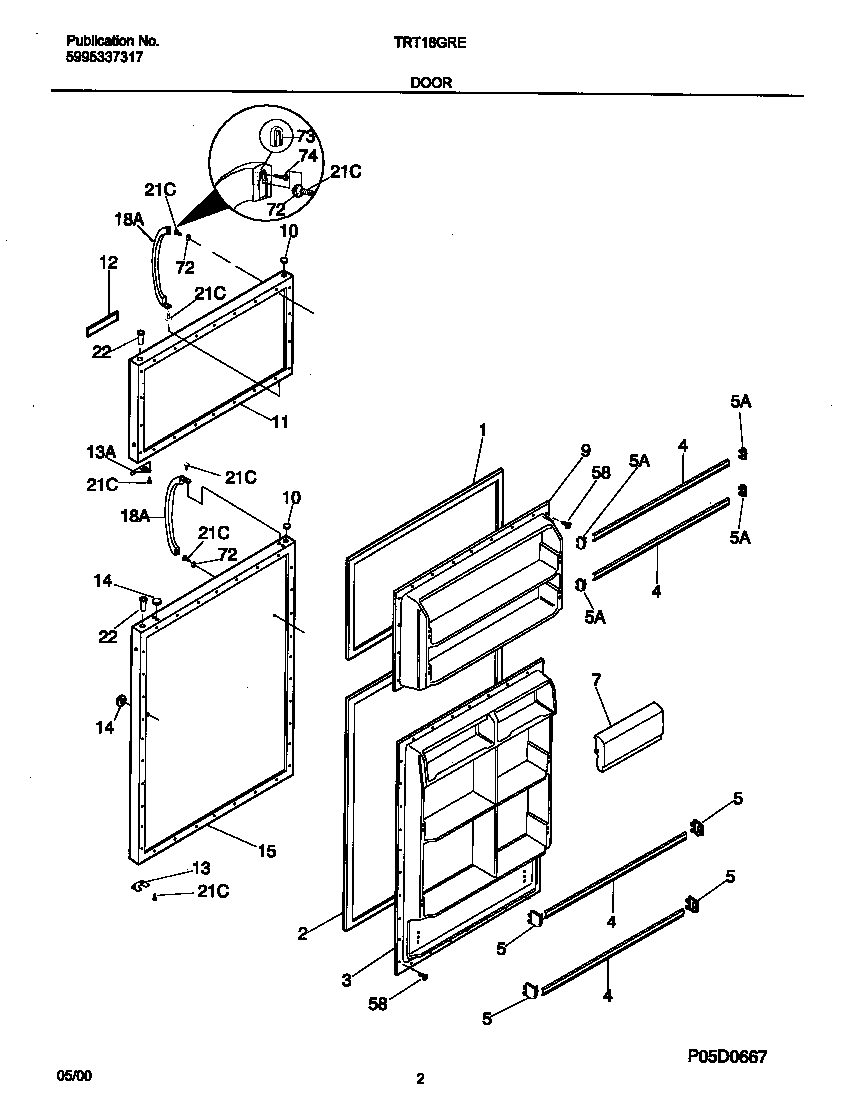

TRT18GRED7 02 – DOOR

TRT18GRED7 02 – DOOR

Written by

in

TRT18GRED7 02 – DOOR

Products

PositionProduct
*82160INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 218287811
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 215220347
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218439135
12WCI 218428202
13WCI 218800300
13WCI 218249002
14WCI 218915702
15WCI 5303917808
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
