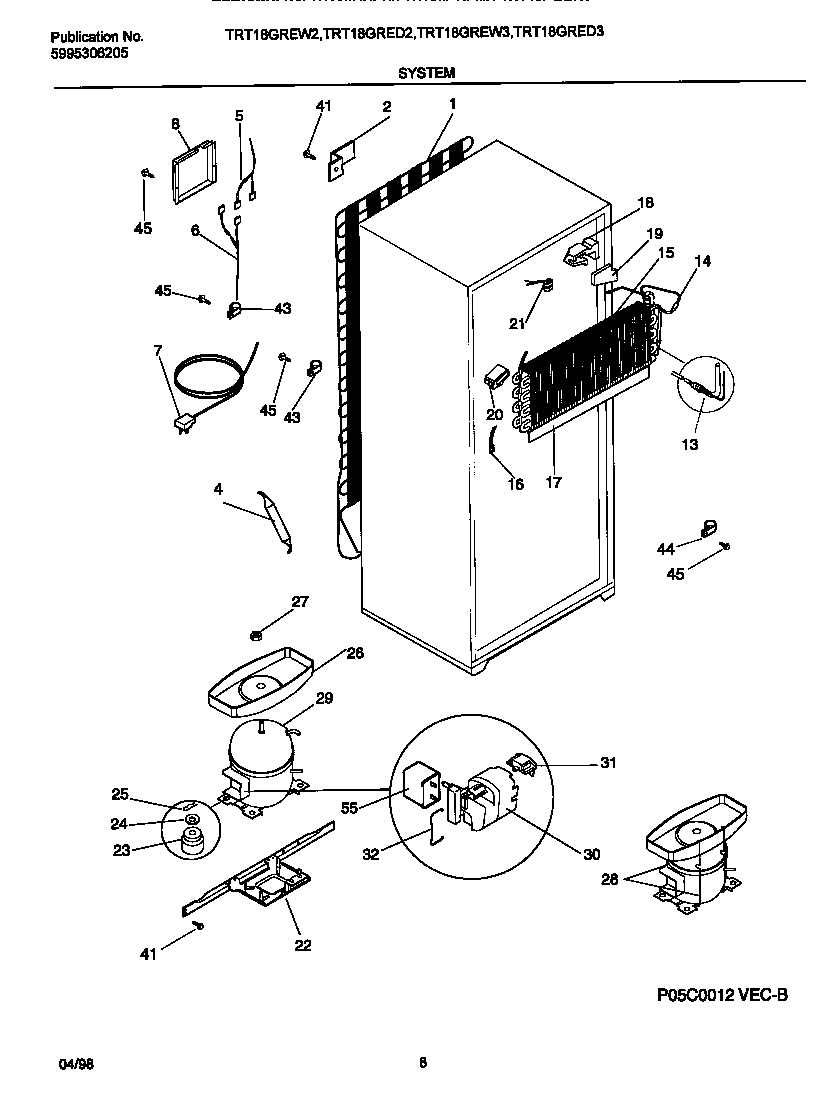

TRT18GREW3 05 – SYSTEM

TRT18GREW3 05 – SYSTEM

Written by

in

TRT18GREW3 05 – SYSTEM

Products

PositionProduct
*75901WCI 3916557
*75895WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*758985308000133 Frigidaire Refrigerator Clamp
*75896218843801 Frigidaire Refrigerator Screw
*758995304455852 Frigidaire Refrigerator Screw
*758975303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 218173900
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429301
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 216008900
31WCI 5303299560
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
