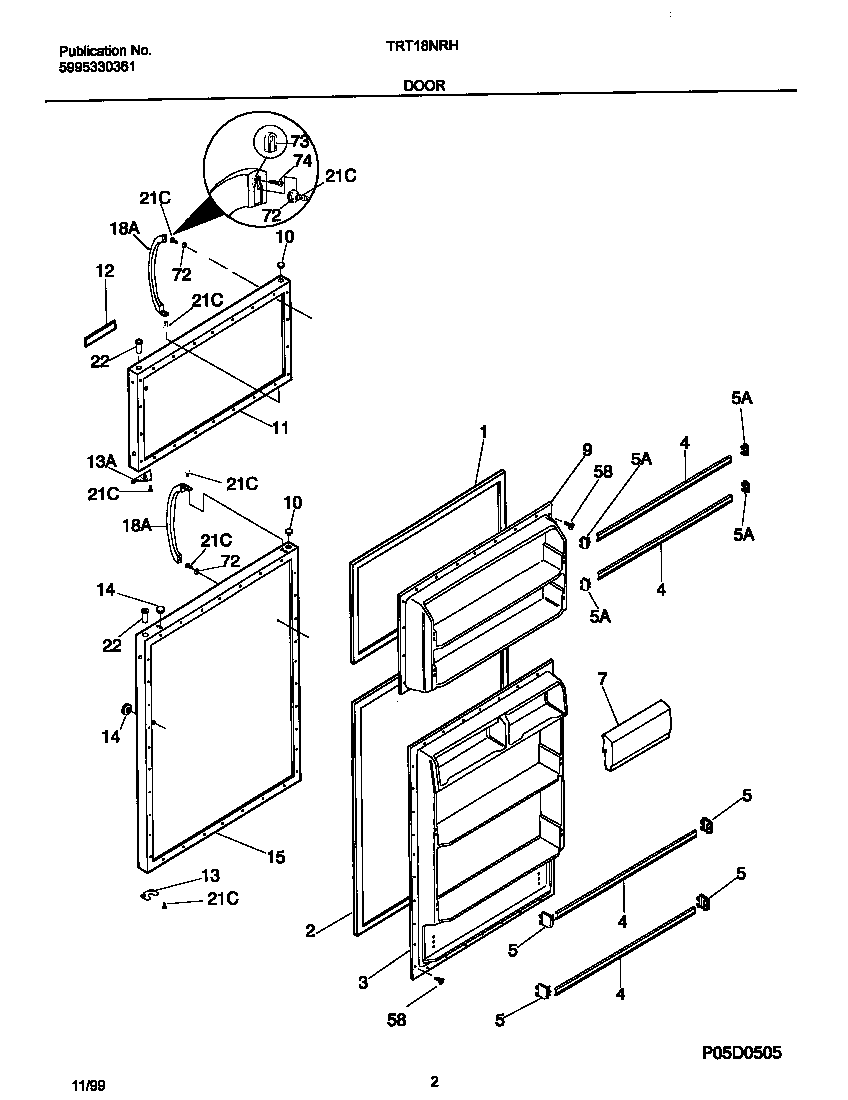

TRT18NRHD1 02 – DOORS

TRT18NRHD1 02 – DOORS

Written by

in

TRT18NRHD1 02 – DOORS

Products

PositionProduct
*30320WCI 215220347
*30325INSULATION
*30323WCI 218428202
*30322MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7DOOR-DAIRY
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 218439135
13WCI 218800300
13WCI 218249002
14WCI 218915702
15WCI 5303917808
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
