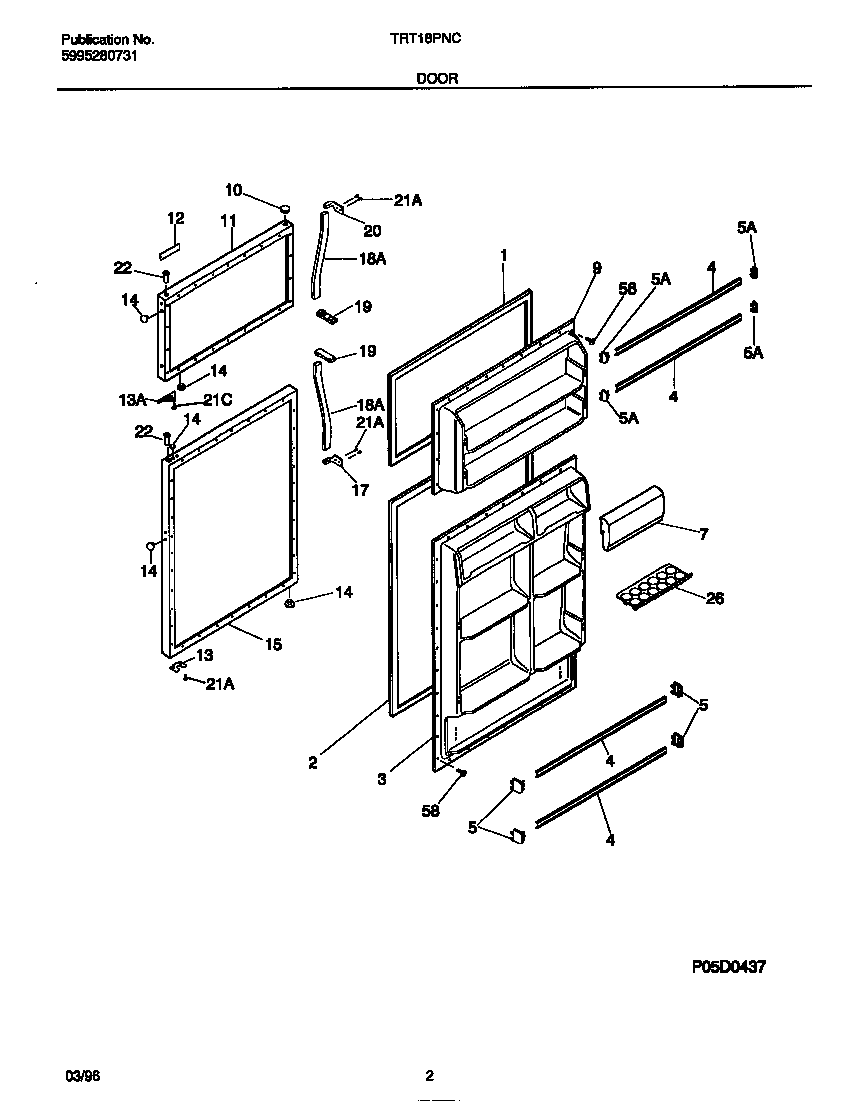

TRT18PNCD1 02 – DOOR

TRT18PNCD1 02 – DOOR

Written by

in

TRT18PNCD1 02 – DOOR

Products

PositionProduct
*44600INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7AWCI 218287811
7BWCI 5303001380
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917636
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 218439117
13WCI 5308000255
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917638
17HANDLE END
18INSERT-HANDLE GRIP, ALMOND (NON-ILLUSTRATED)
18HANDLE-DOOR
19WCI 215365000
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
