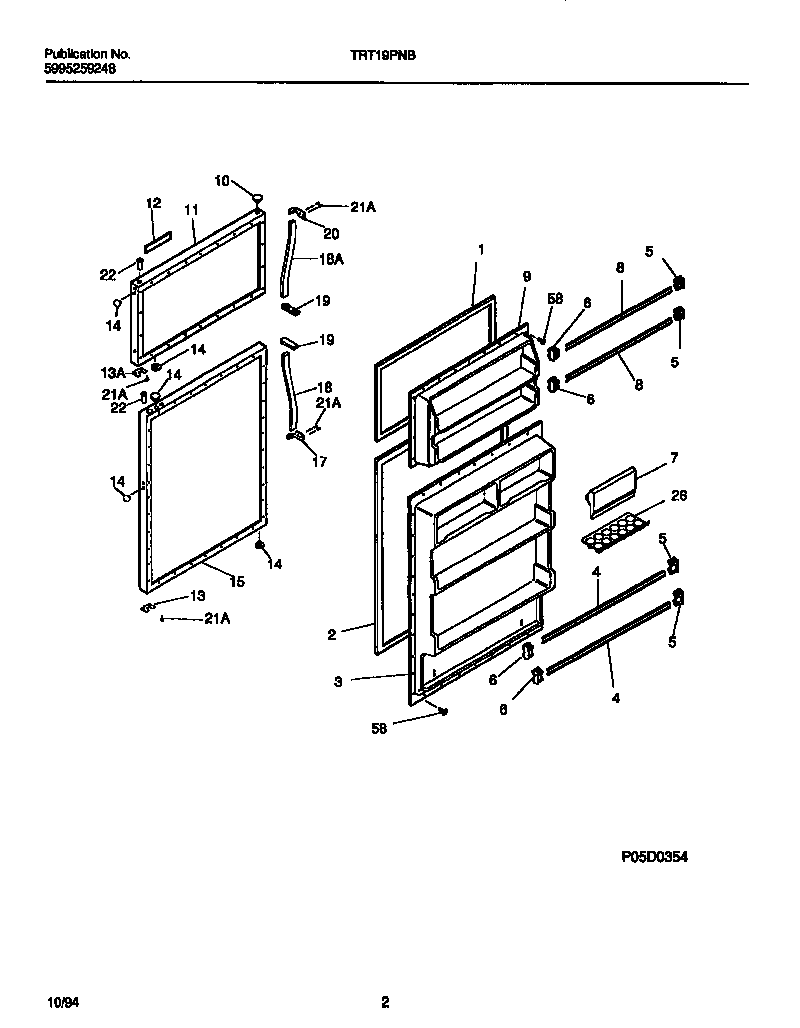

TRT19PNBD0 02 – DOOR SECTIONadmin2025-04-26T09:48:08+00:00TRT19PNBD0 02 – DOOR SECTION
Products
| Position | Product |
|---|
| *07360 | INSULATION |
| 1 | WCI 215608902 |
| 2 | WCI 215732403 |
| 3 | WCI 5303206569 |
| 4 | WCI 5303281387 |
| 5 | WCI 5303007295 |
| 6 | WCI 5303007297 |
| 7 | WCI 5303303599 |
| 8 | WCI 5303288345 |
| 9 | PANEL-INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 3916272 |
| 12 | WCI 215366311 |
| 12B | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12A | WCI 215220318 |
| 13 | DOOR STOP, REFR SECTION |
| 13A | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE |
| 17 | HANDLE END |
| 18C | WCI 5303301466 |
| 18A | WCI 5303292745 |
| 18A | WCI 5303271858 |
| 18B | INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED) |
| 18 | WCI 5303015111 |
| 18A | WCI 5303201377 |
| 19 | WCI 215365000 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 26 | 215817806 Frigidaire Refrigerator Egg Tray |
