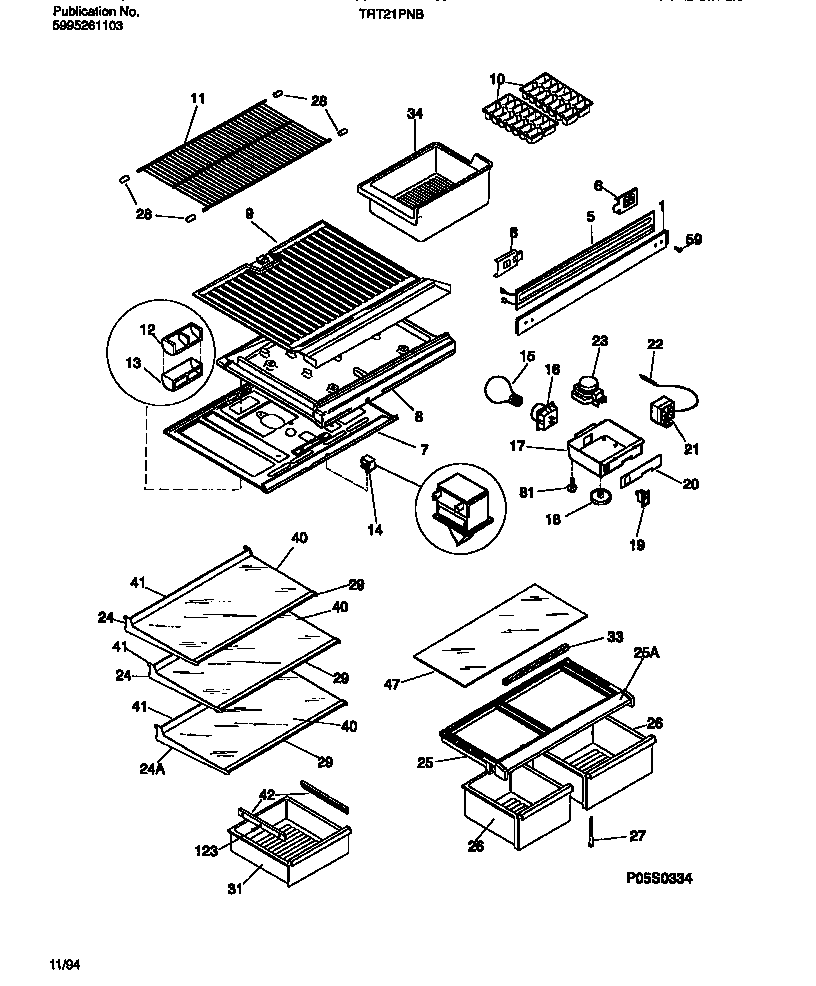

TRT21PNBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7BWCI 5303001380
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
8WCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 530328243
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17ANUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21WCI 5303200810
21AWCI 5303001260
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24AWCI 215919123
24WCI 215919118
25AWCI 5303280075
25WCI 5303205638
26AWCI 5303304670
26PAN-CRISPER, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919505
31WCI 5303304512
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
40GLASS-FULL SHELF
41WCI 215919805
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
