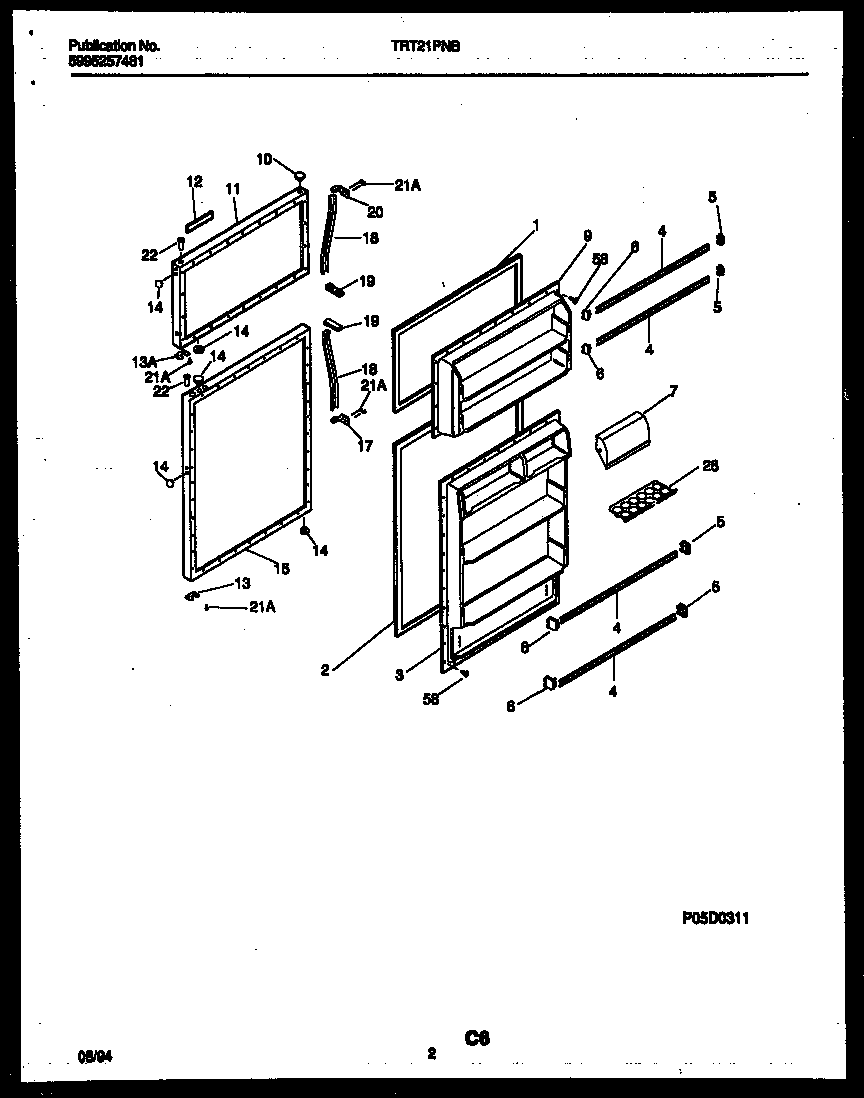

TRT21PNBW0 02 – DOOR PARTS

TRT21PNBW0 02 – DOOR PARTS

Written by

in

TRT21PNBW0 02 – DOOR PARTS

Products

PositionProduct
*10665INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303212482
4WCI 5303281388
5WCI 5303007295
6WCI 5303007297
7WCI 5303303599
9WCI 5318540802
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, W/INSULATION
12FRAME – NAMEPLATE,WHITE
12BWCI 215220317
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
17HANDLE END
18CWCI 5303301466
18WCI 5303015111
18BWCI 5303301465
19WCI 215365000
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
