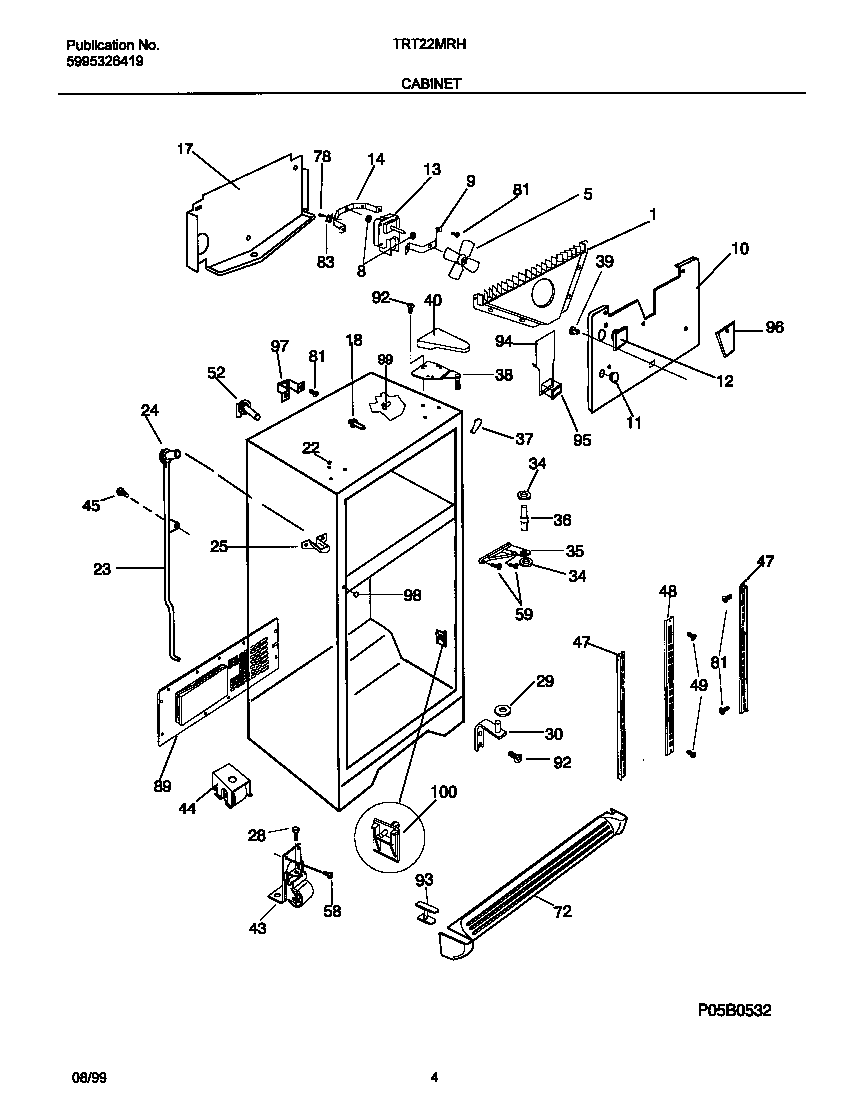

TRT22MRHW0 03 – CABINET

TRT22MRHW0 03 – CABINET

Written by

in

TRT22MRHW0 03 – CABINET

Products

PositionProduct
*80926SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*80923WCI 215314301
*80927SEAL-AIR DUCT COVER
*80922WCI 5303001361
*80933PLUG, BUTTON, CABINET LINER (NI)
*80928GROMMET-SHELF MTG,.69“ LONG
*80921215474201 Frigidaire Refrigerator Washer
*80925WCI 218730800
*80924WCI 218730700
*80929PLUG-WTR INLET TUBE
*80930218515401 Frigidaire Refrigerator Clip
*809325303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218780001
36WCI 215095900
37WCI 5303321081
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
39WCI 215848000
40WCI 5303318773
43WCI 218615300
44WCI 218738300
455304455852 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49218493101 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
585304455651 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218359604
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362601
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
