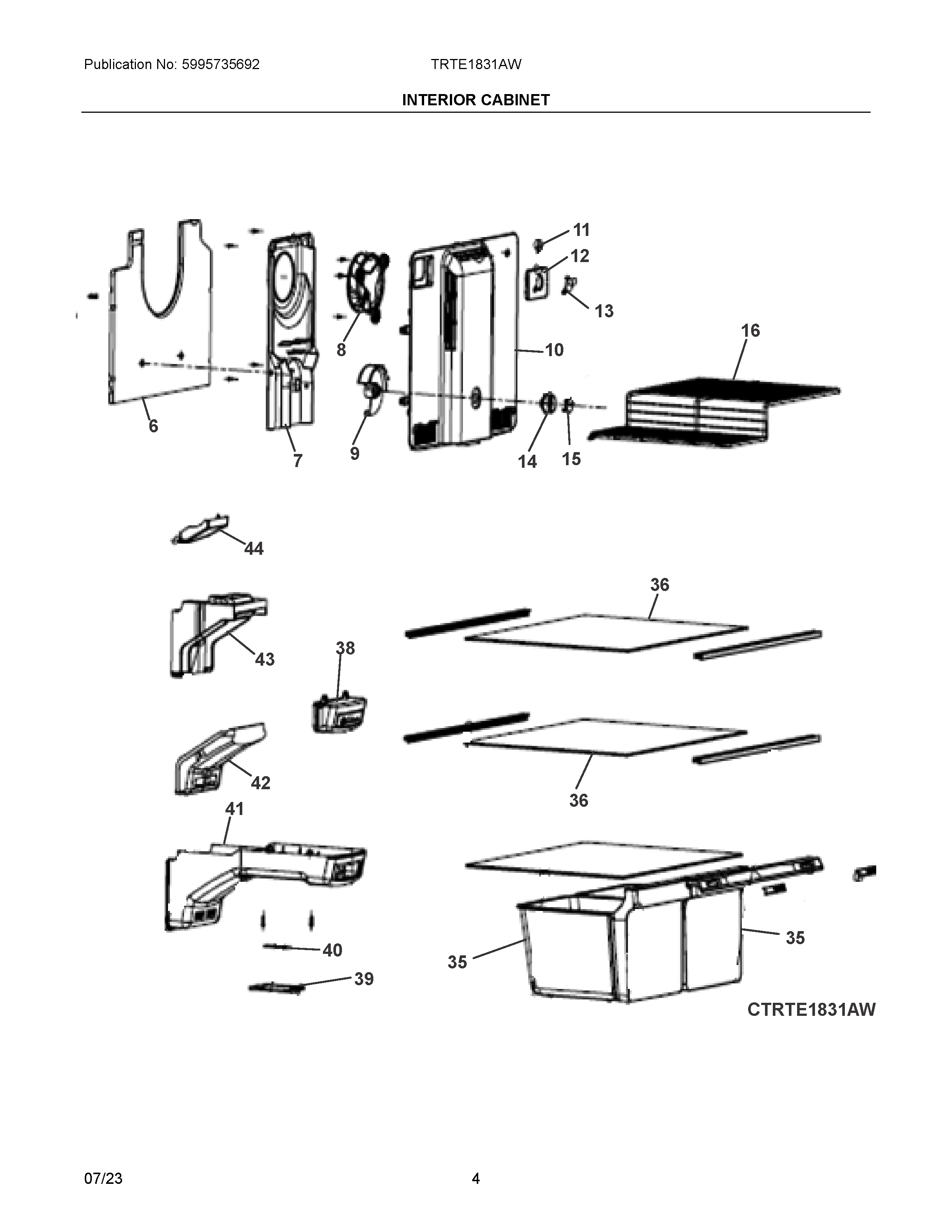

TRTE1831AW 03 – INTERIOR CABINET

TRTE1831AW 03 – INTERIOR CABINET

Written by

in

TRTE1831AW 03 – INTERIOR CABINET

Products

PositionProduct
NIF5304536500 Frigidaire Housing
NIAPC BOARD
NIACOVER, CRISPER DRAWER
NIB5304518514 Frigidaire Refrigerator Harness
NIC5304518515 Frigidaire Harness
NIDHOUSING, MAIN CONTROL
NIEOVERLAY, DISPLAY
6INSULATION, AIR DUCT, REAR FREEZER
7COVER, AIR DUCT, BACK
85304533212 Frigidaire Refrigerator Fan Motor
9DAMPER, AIR DUCT, FREEZER
10COVER, AIR DUCT, FREEZER
11CAP, SCREW
12COVER, ICE MAKER HOLE, FREEZER
13COVER, CROSSING, AIR DUCT
14KNOB, AIR DUCT, FREEZER
15COVER, KNOB
165304529322 Frigidaire Refrigerator Shelf
355304529340 Frigidaire Drawer
36SHELF ASSEMBLY
385304529343 Frigidaire Refrigerator Control Assembly
395304518511 Frigidaire Cover
405304518510 Frigidaire Refrigerator Light
415304518509 Frigidaire Refrigerator Housing
425304518505 Frigidaire Refrigerator Insulation
435304518504 Frigidaire Refrigerator Insulation
44TROUGH, WATER COLLECTOR
