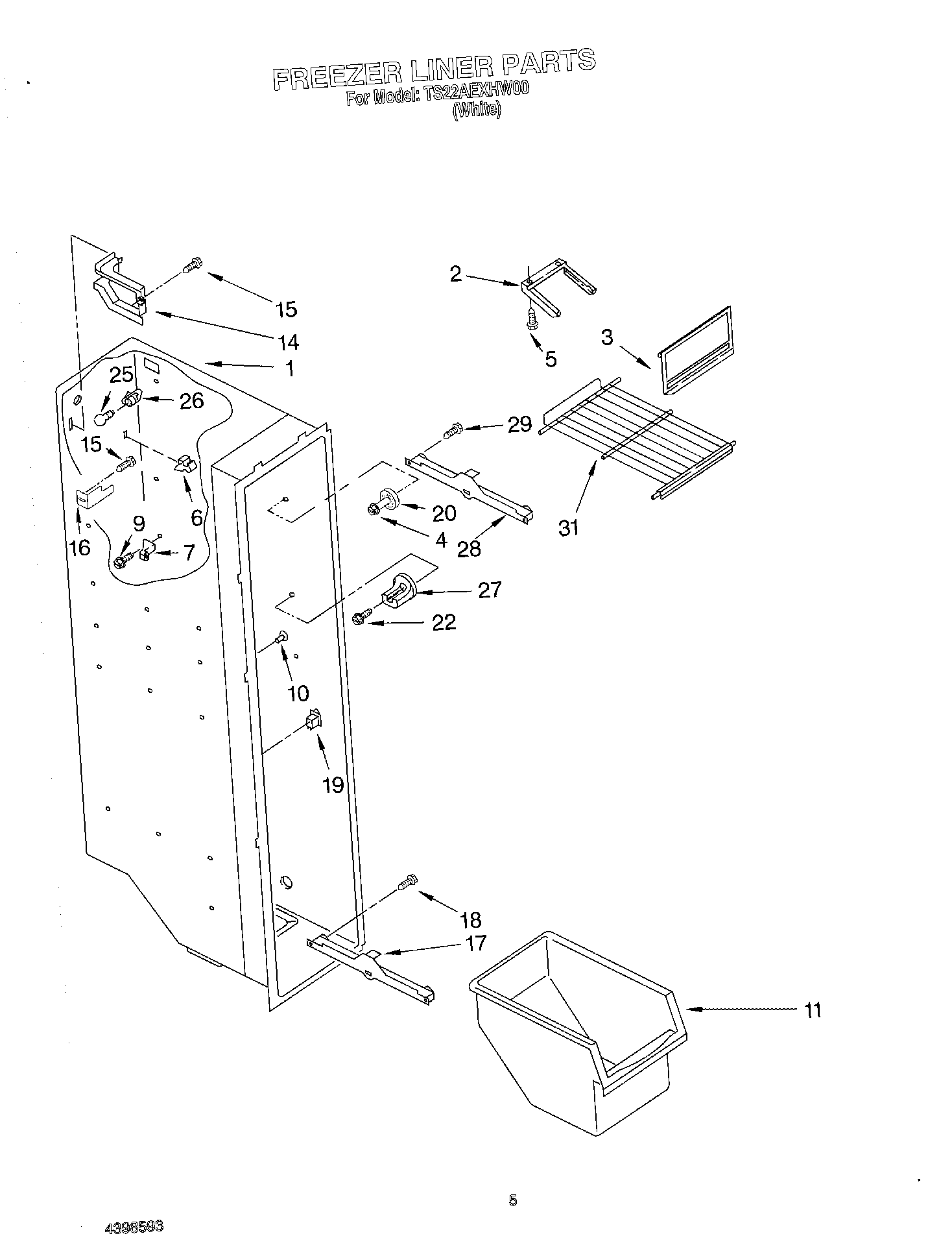

TS22AEXHW00 04 – FREEZER LINER

TS22AEXHW00 04 – FREEZER LINER

Written by

in

TS22AEXHW00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4WP3400806 Whirlpool Screw
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
10Grommet
11Bin, Freezer
14Cover, Wiring
15SCREW
16Bracket, Fill Tube
17Slide, Basket (Left Side)
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
22W10142289 Whirlpool Air Conditioner Screw
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
31WP2174249K Whirlpool Refrigerator Wire Shelf
31Shelf (2)
