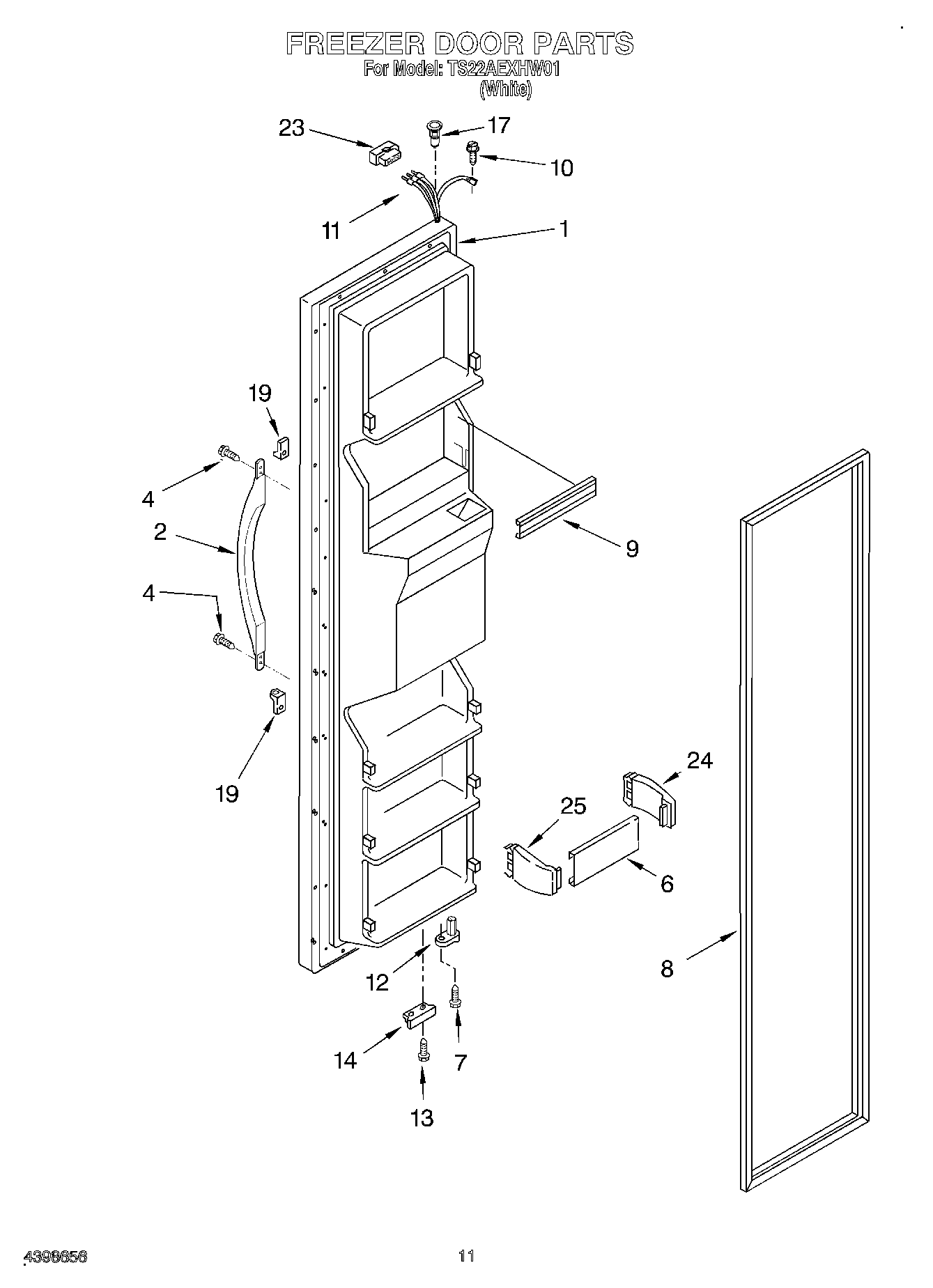

TS22AEXHW01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts)
2	Handle, Center (White)
4	WP489491 Whirlpool Refrigerator Screw
6	Door, Shelf (4)
7	WP3400012 Whirlpool Refrigerator Screw
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
17	WP2182181 Whirlpool Refrigerator Thimble
19	WP2193353W Whirlpool Refrigerator Trim Handle
23	WP2154473 Whirlpool Refrigerator Connector
24	ENDCAP
25	WP2195917K Whirlpool Refrigerator Endcap
