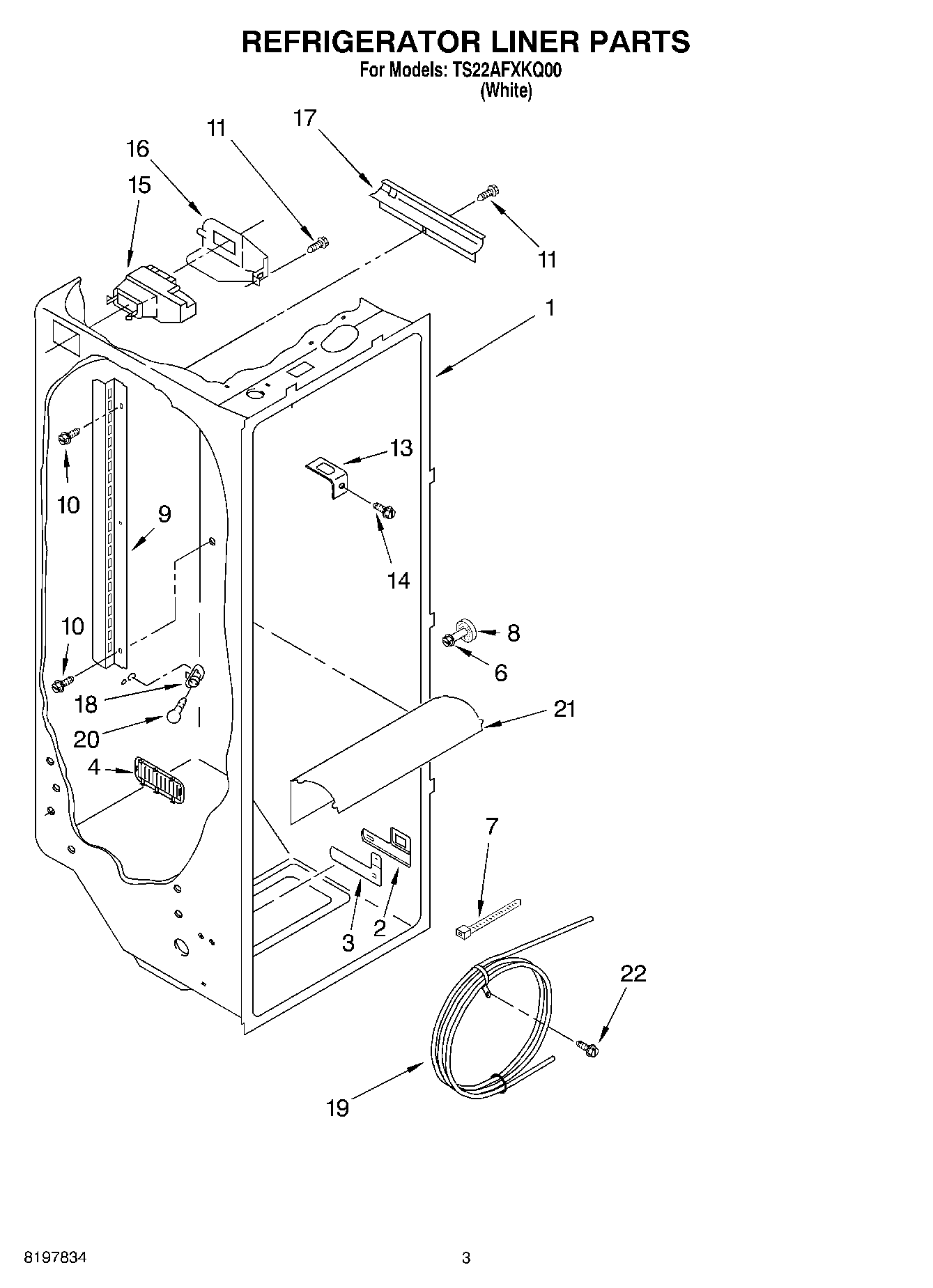

TS22AFXKQ00 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
6	WP3400806 Whirlpool Screw
7	WPW10339879 Whirlpool Wire Tie
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	Shelf Ladder
10	WP488729 Whirlpool Refrigerator Door Screw
11	W10759522 Whirlpool Screw
13	WP2256085 Whirlpool Refrigerator Retainer
14	WP488488 Whirlpool Refrigerator Screw
15	WPW10151374 Whirlpool Refrigerator Diffuser
16	2152019 Whirlpool Refrigerator Cover
17	2150331 Whirlpool Refrigerator Wire Cover
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
