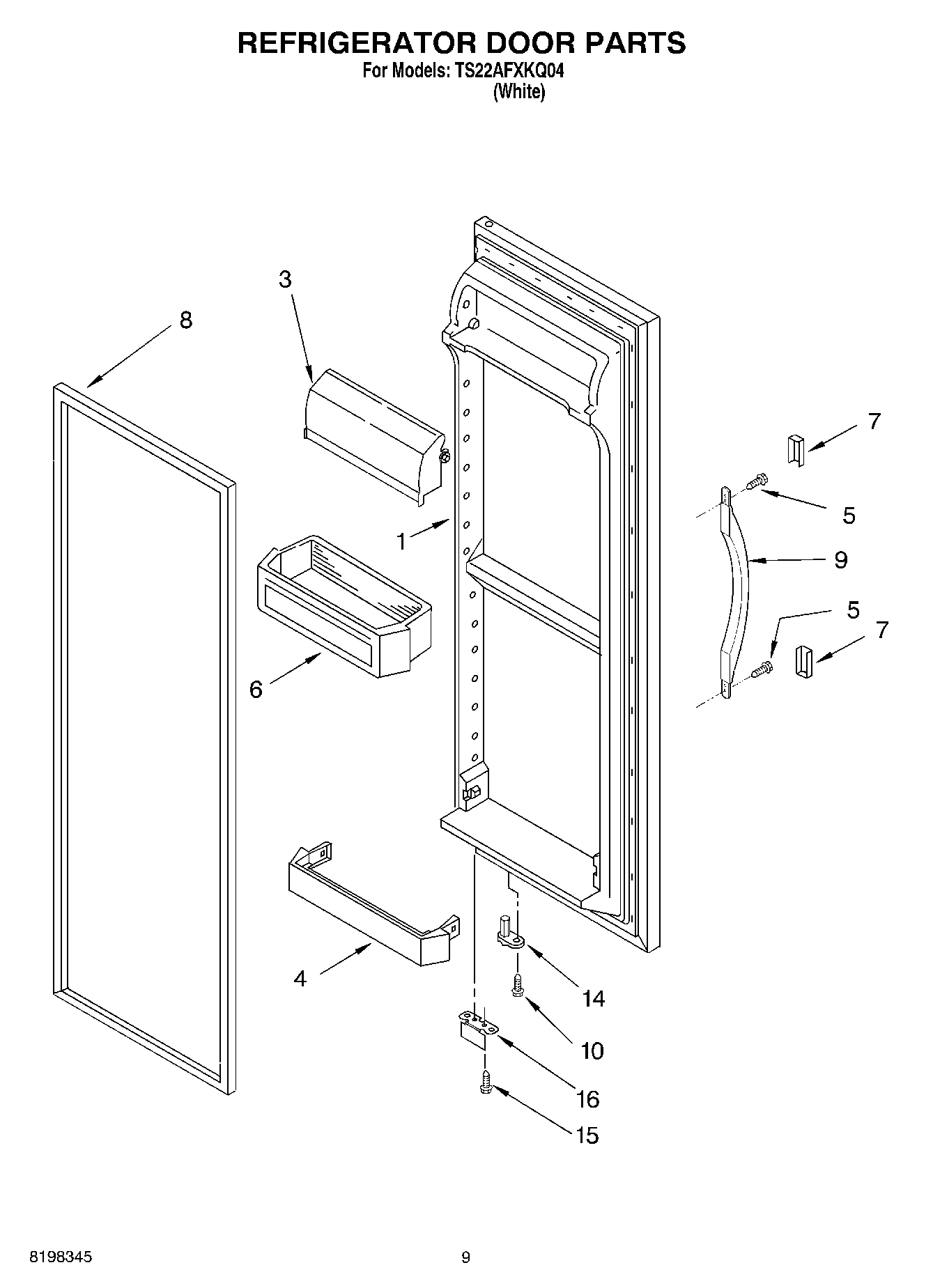

TS22AFXKQ04 07 – REFRIGERATOR DOOR

TS22AFXKQ04 07 – REFRIGERATOR DOOR

Written by

in

TS22AFXKQ04 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
3WP2256101 Whirlpool Dairy Door
4WP2177962K Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WP2187172 Whirlpool Refrigerator Door Shelf Bin
7WP2193353W Whirlpool Refrigerator Trim Handle
82159073 Whirlpool Refrigerator Door Gasket
9Handle, Center (White)
10WP3400012 Whirlpool Refrigerator Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
