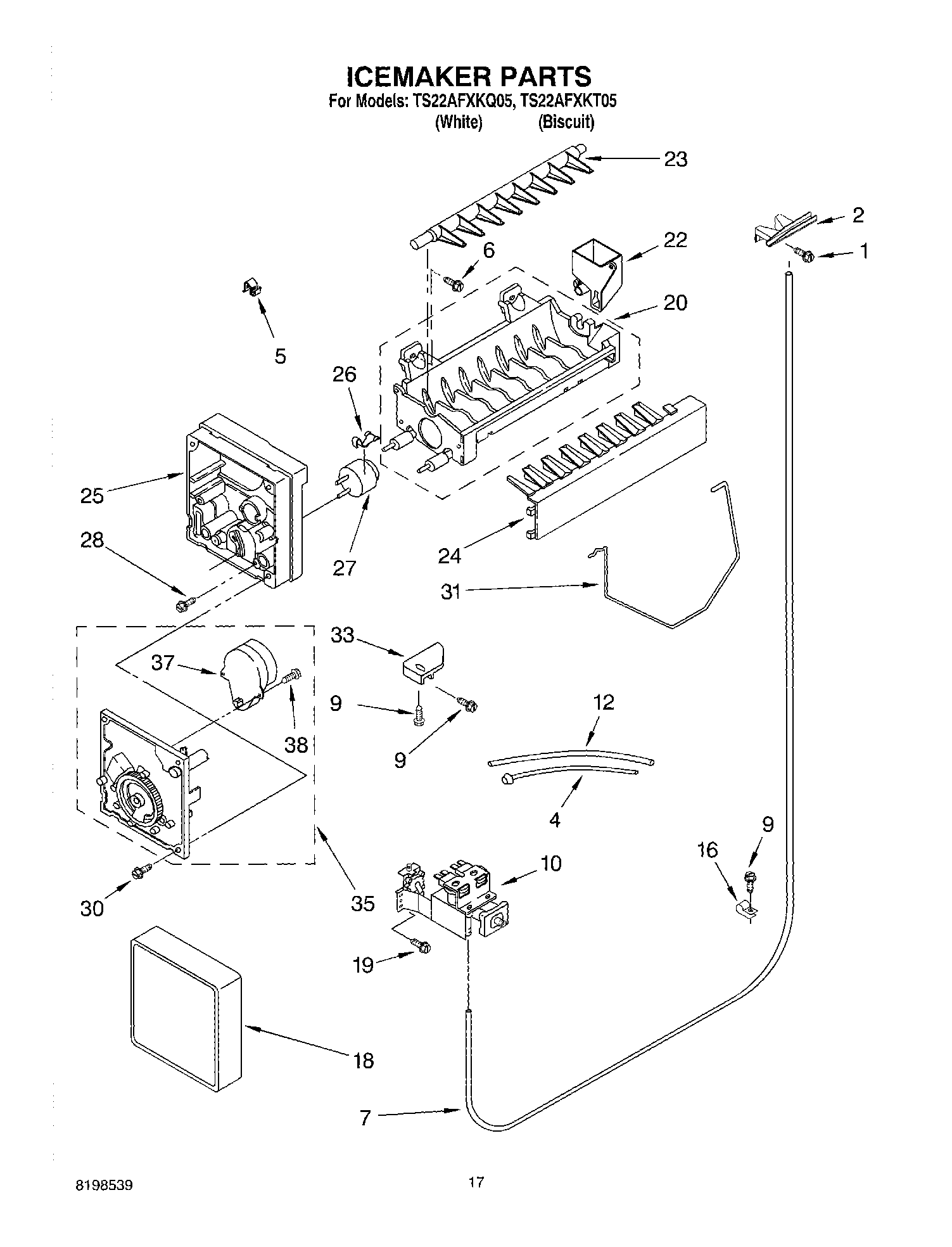

TS22AFXKQ05 11 – ICEMAKER PARTSadmin2025-04-26T12:23:33+00:00TS22AFXKQ05 11 – ICEMAKER PARTS ProductsPositionProduct2W11505385 Whirlpool Refrigerator Chute4WPW10350006 Whirlpool Refrigerator Water Tube5WP628379 Whirlpool Refrigerator Clip6WP488163 Whirlpool Refrigerator Screw7W10823511 Whirlpool Refrigerator Water Tube9WP489478 Whirlpool Refrigerator Screw10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit128201597 Whirlpool Inlet Water Fill Tube Kit Filter16WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm33W11500948 Whirlpool Refrigerator Bracket358201515 Whirlpool Refrigerator Motor and Gear Module Kit37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly38489136 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
