TS22AFXKQ05 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

TS22AFXKQ05 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Written by

in

TS22AFXKQ05 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
WPL ARI131734A
WPW10312301 Whirlpool Refrigerator Ice Container
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI131738A
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI131737A
606755 Whirlpool Refrigerator Bag
WPL ARI131736A
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI131735A
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint

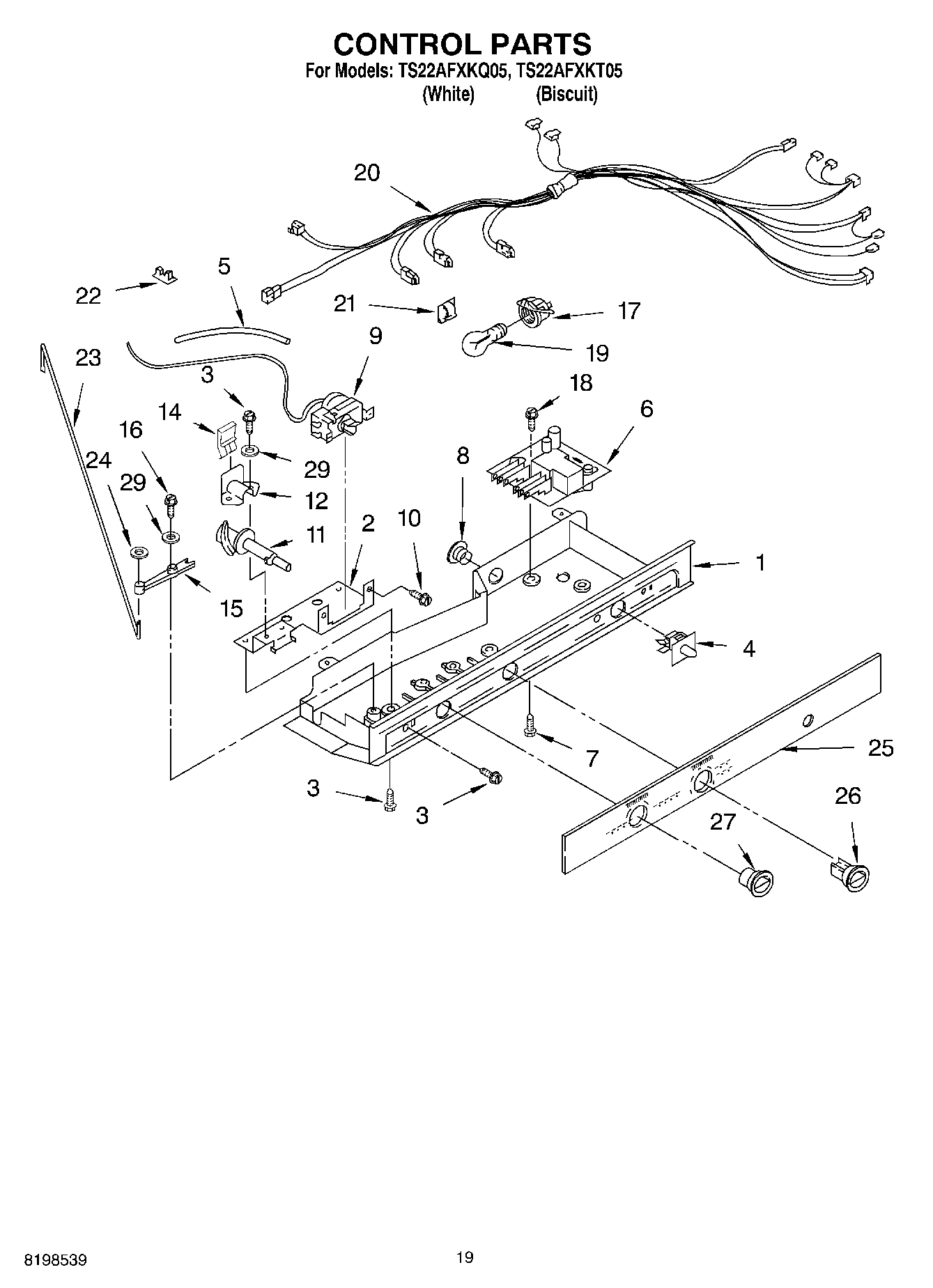

1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10822278 Whirlpool Defrost Timer
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18489392 Whirlpool Refrigerator Screw
19RANGE ONLY 40W 120V APPL BULB
202311636 Whirlpool Refrigerator Wire Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
