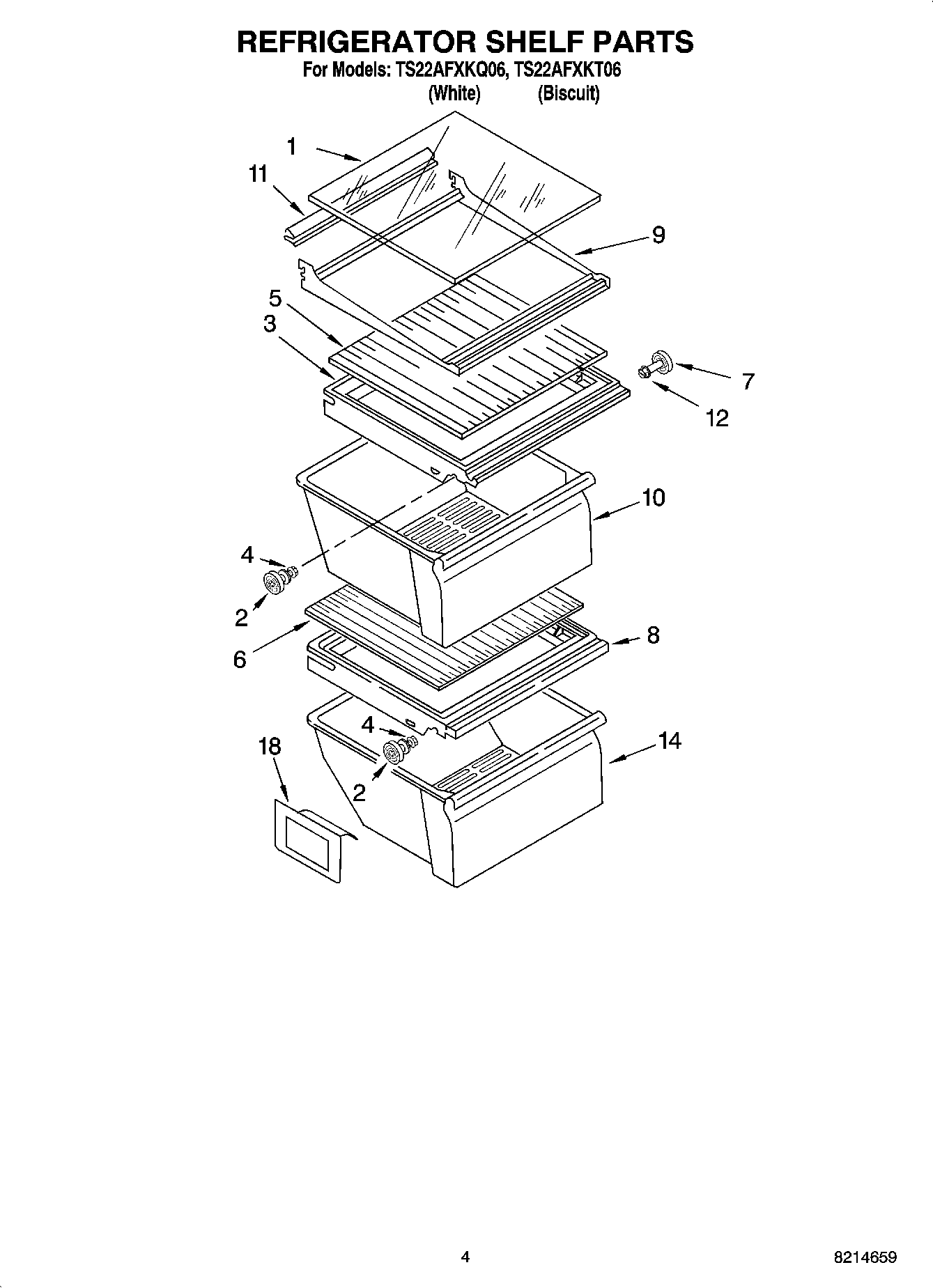

TS22AFXKQ06 03 – REFRIGERATOR SHELF PARTS

TS22AFXKQ06 03 – REFRIGERATOR SHELF PARTS

Written by

in

TS22AFXKQ06 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Glass (3)
2WP2196483 Whirlpool Refrigerator Shelf Stud
3W10508993 Whirlpool Refrigerator Cover Pan
4WP3400806 Whirlpool Screw
5W10864399 Whirlpool Glass Shelf
7W11223328 Whirlpool Refrigerator Shelf Stud
8Cover, Meat Pan
9Shelf, Cantilever (3)
10WP2188661 Whirlpool Crisper Pan
11Retainer
12WP3-24004-109 Whirlpool Refrigerator Screw
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
182179350 Whirlpool Refrigerator Deflector
