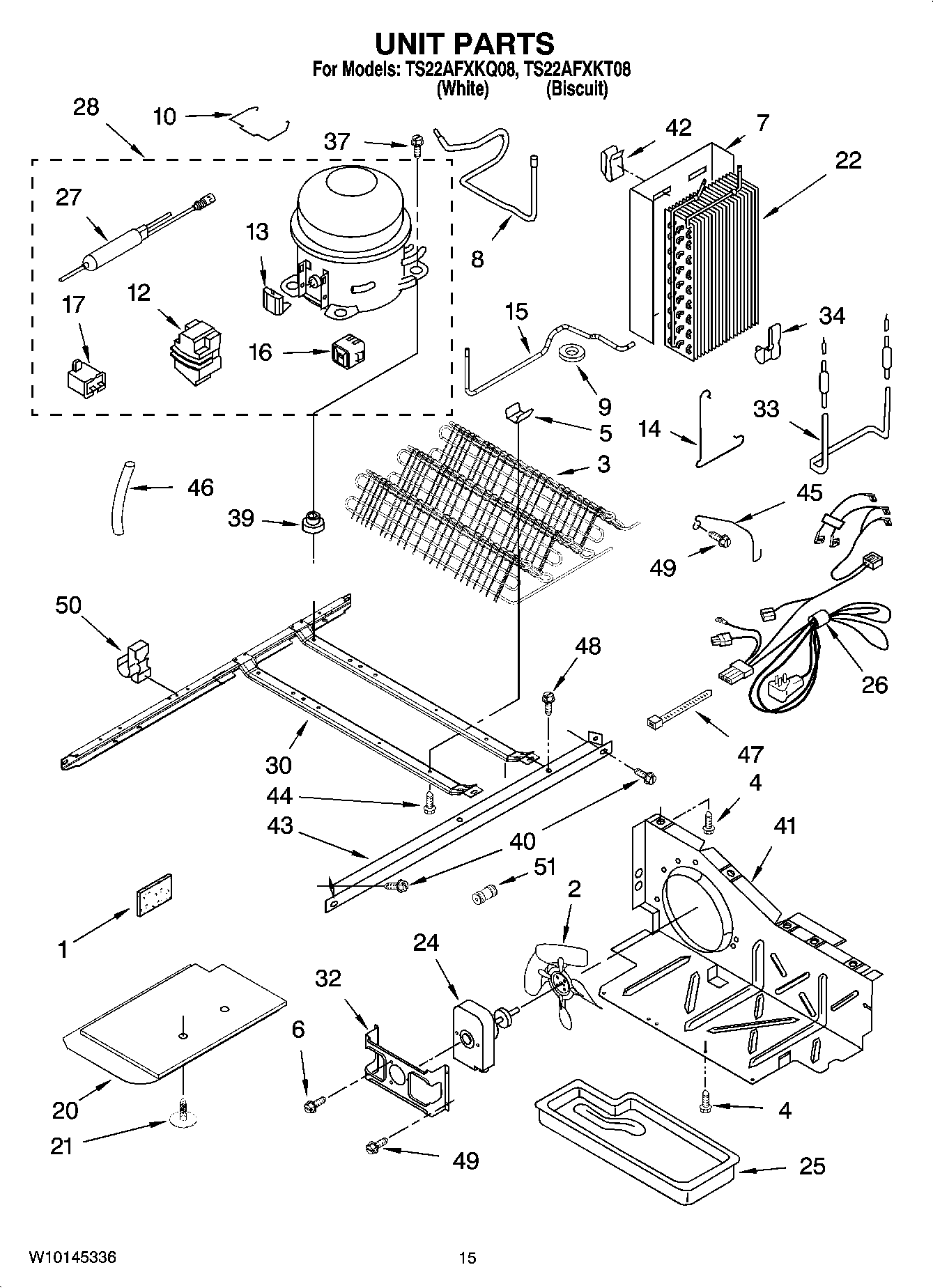

TS22AFXKQ08 10 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	2217195 Whirlpool Refrigerator Shield
8	2220642 Whirlpool Refrigerator Tube
9	Bushing, Compressor
10	2212996 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	Clamp
15	2261599 Whirlpool Refrigerator Tube
16	WP2188831 Whirlpool Refrigerator Start Device
17	WP4387764 Whirlpool Run Capacitor
17	WP65889-4 Whirlpool Refrigerator Capacitor
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Unit, Harness
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10355489 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Mounting Rail
44	W11544659 Whirlpool Refrigerator Screw
45	Guard, Fan
46	SLEEVE
47	WPW10339879 Whirlpool Wire Tie
48	WP489427 Whirlpool Refrigerator Screw
49	WP489478 Whirlpool Refrigerator Screw
50	Clip, Wire & Tube
51	Following Parts Not Illustrated and Opt
51	WPW10334458 Whirlpool Refrigerator Connector
51	VALVE, ACCESS (5/8“)
51	VALVE, ACCESS (1/2“)
51	978026 Whirlpool Refrigerator Primary Valve
51	978027 Whirlpool Refrigerator Primary Valve
51	876764 Whirlpool Refrigerator Primary Valve
51	978030 Whirlpool Refrigerator Valve
51	WP978025 Whirlpool Refrigerator Valve
51	WPL ARI131776A
