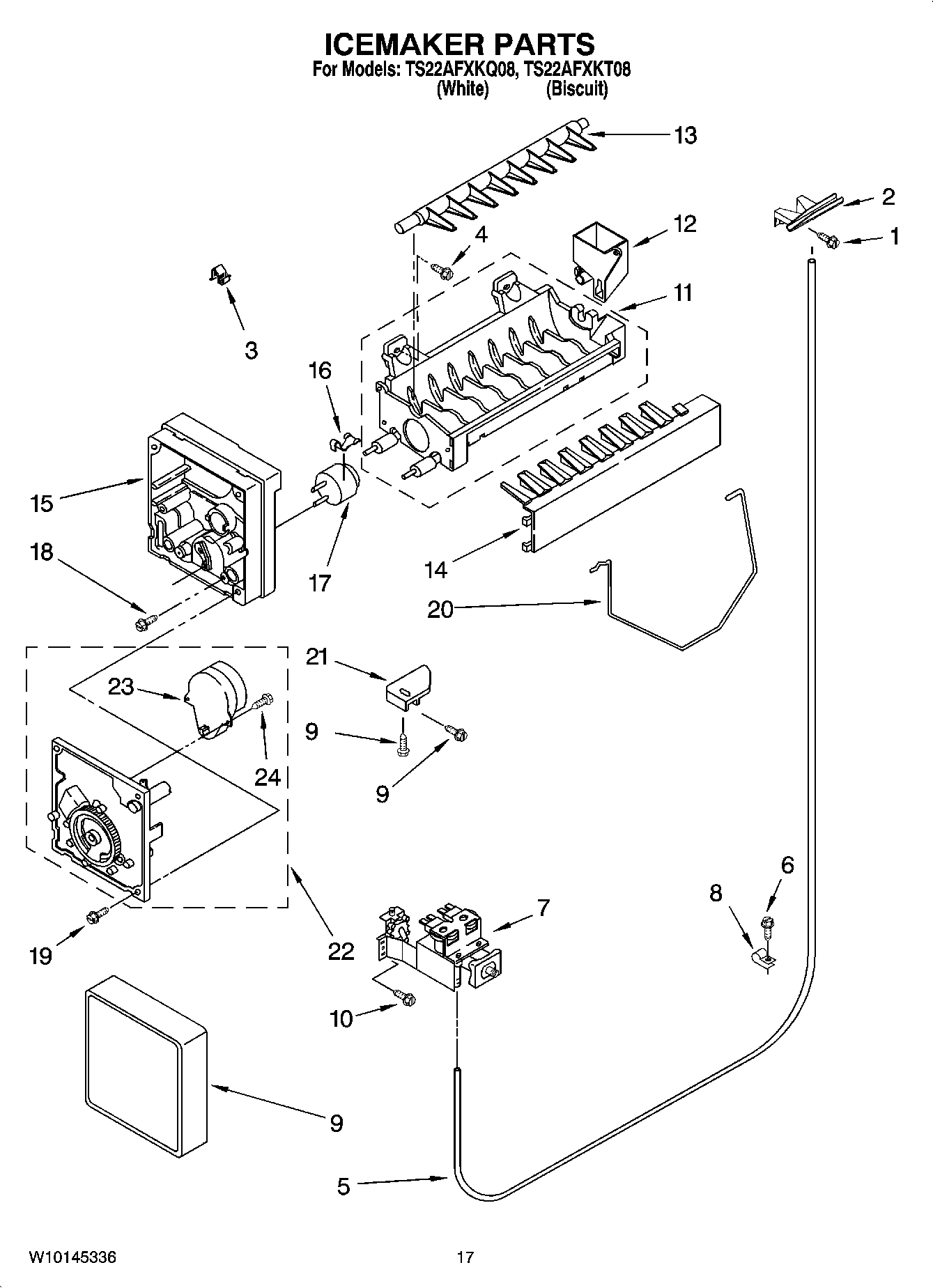

TS22AFXKQ08 11 – ICEMAKER PARTS

TS22AFXKQ08 11 – ICEMAKER PARTS

Written by

in

TS22AFXKQ08 11 – ICEMAKER PARTS

Products

PositionProduct
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4WP488163 Whirlpool Refrigerator Screw
5W10823511 Whirlpool Refrigerator Water Tube
6WP489478 Whirlpool Refrigerator Screw
7W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
8WP488366 Whirlpool Refrigerator Clamp
9WPW10289690 Whirlpool Ice Maker Cover
10WPW10141625 Whirlpool Refrigerator Screw Assembly
11WPW10190929 Whirlpool Refrigerator Ice Maker Mold
12W10122561 Whirlpool Refrigerator Cup Fill
13WP627843 Whirlpool Refrigerator Ejector Arm
14WP2182124 Whirlpool Refrigerator Stripper Arm
15WP2195914 Whirlpool Refrigerator Ice Maker Housing
16WP2315522 Whirlpool Refrigerator Clip
17WP627985 Whirlpool Icemaker Cycling Thermostat
188533917 Whirlpool Refrigerator Screw
19WP681249 Whirlpool Screw Assembly
20W11342242 Whirlpool Refrigerator Ice Level Arm
21W11500948 Whirlpool Refrigerator Bracket
238201515 Whirlpool Refrigerator Motor and Gear Module Kit
24489136 Whirlpool Refrigerator Screw
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
