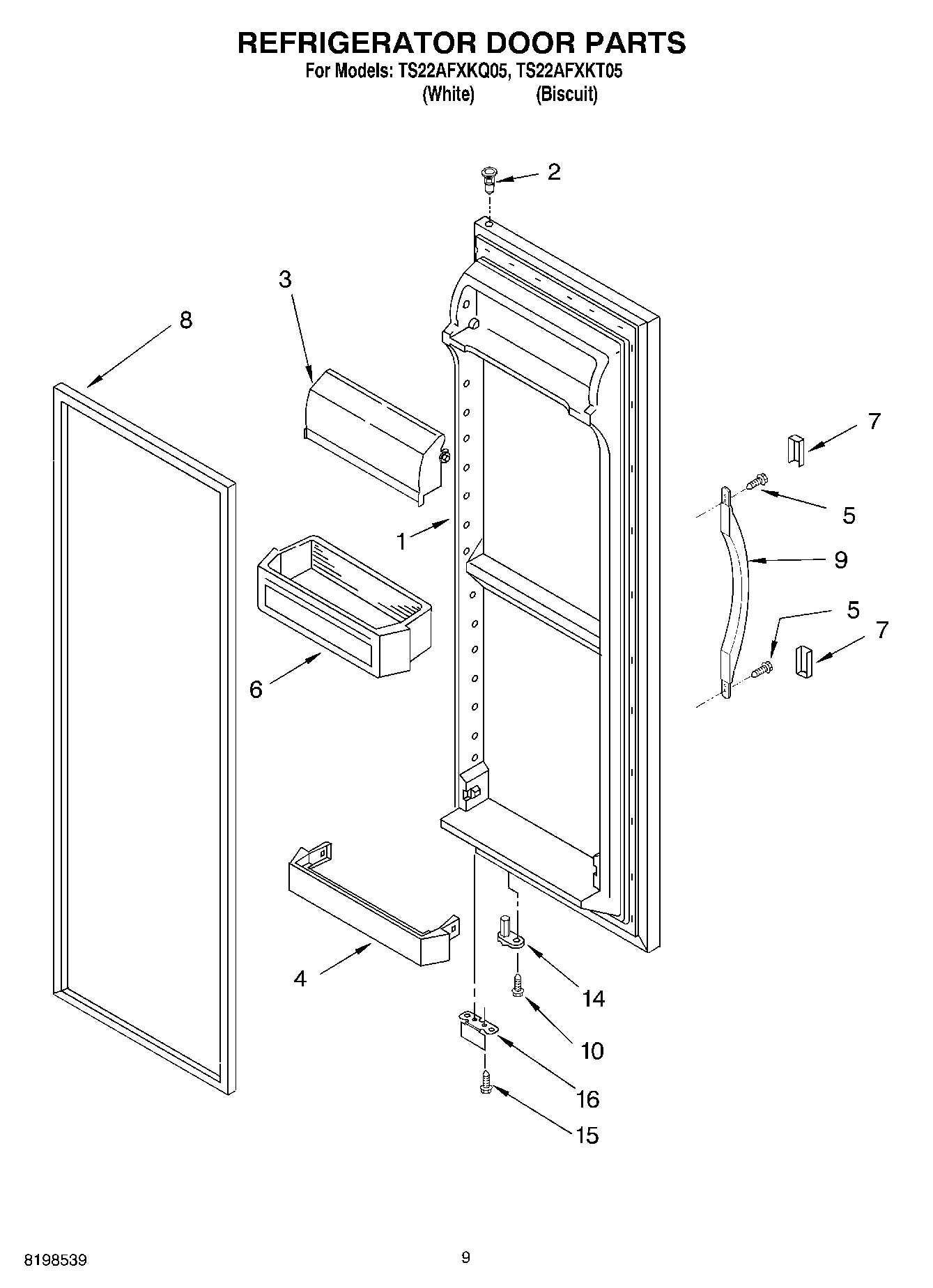

TS22AFXKT05 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (White)
1	L2206826T Whirlpool Refrigerator Dorr FIP BT
2	WP2182181 Whirlpool Refrigerator Thimble
3	WP2256101 Whirlpool Dairy Door
4	WP2177962K Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WP2187172 Whirlpool Refrigerator Door Shelf Bin
7	WP2193353W Whirlpool Refrigerator Trim Handle
7	Cover, Trim (Biscuit)
8	2159073 Whirlpool Refrigerator Door Gasket
9	Handle, Center (White)
9	Handle, Center (Biscuit)
10	WP3400012 Whirlpool Refrigerator Screw
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
