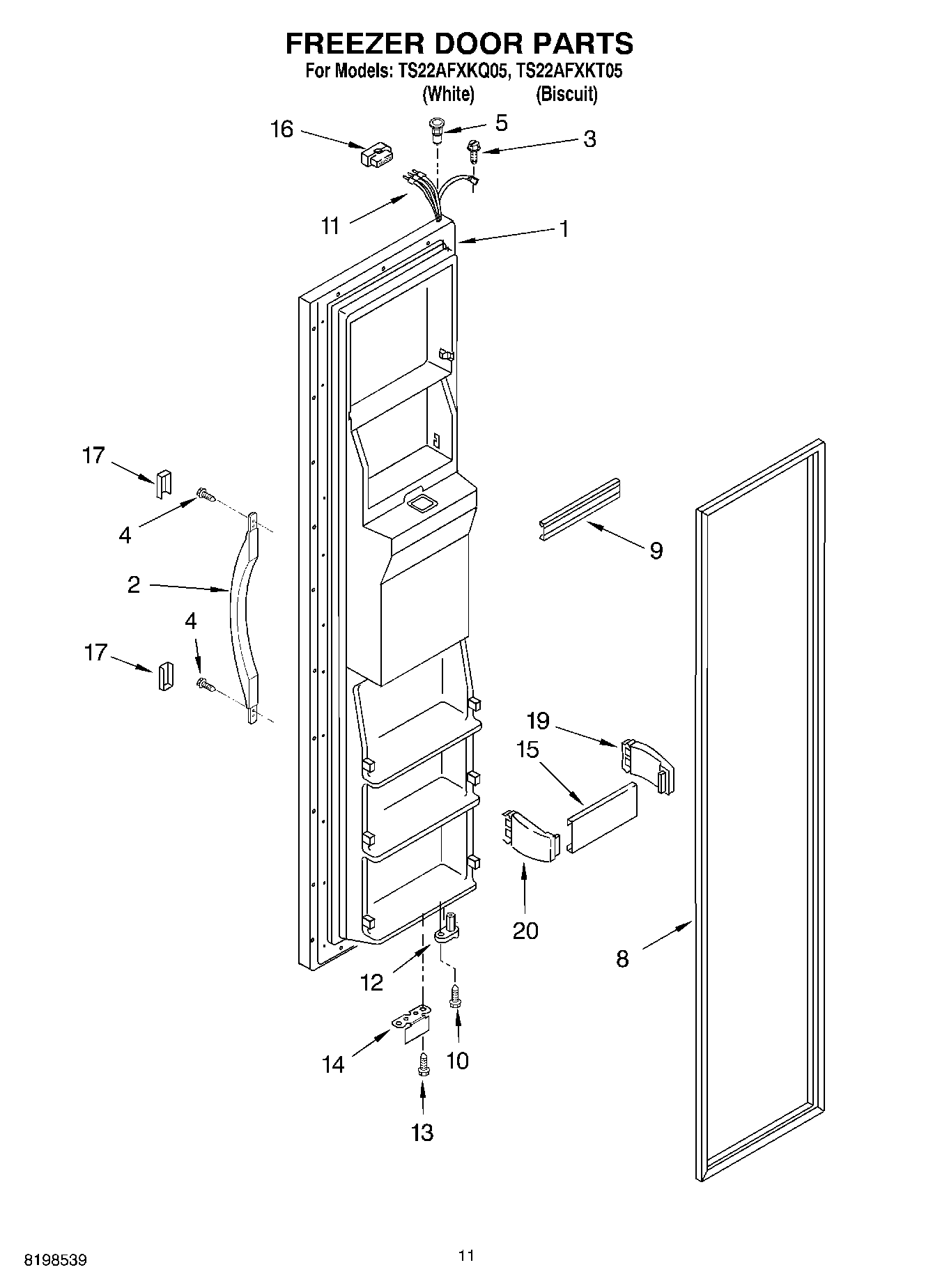

TS22AFXKT05 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
2	Handle, Center (Biscuit)
2	Handle, Center (White)
3	WP489128 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2182181 Whirlpool Refrigerator Thimble
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	2311642 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	Door, Shelf (4)
16	WP2154473 Whirlpool Refrigerator Connector
17	Cover, Trim (Biscuit)
17	WP2193353W Whirlpool Refrigerator Trim Handle
19	ENDCAP
20	WP2195917K Whirlpool Refrigerator Endcap
