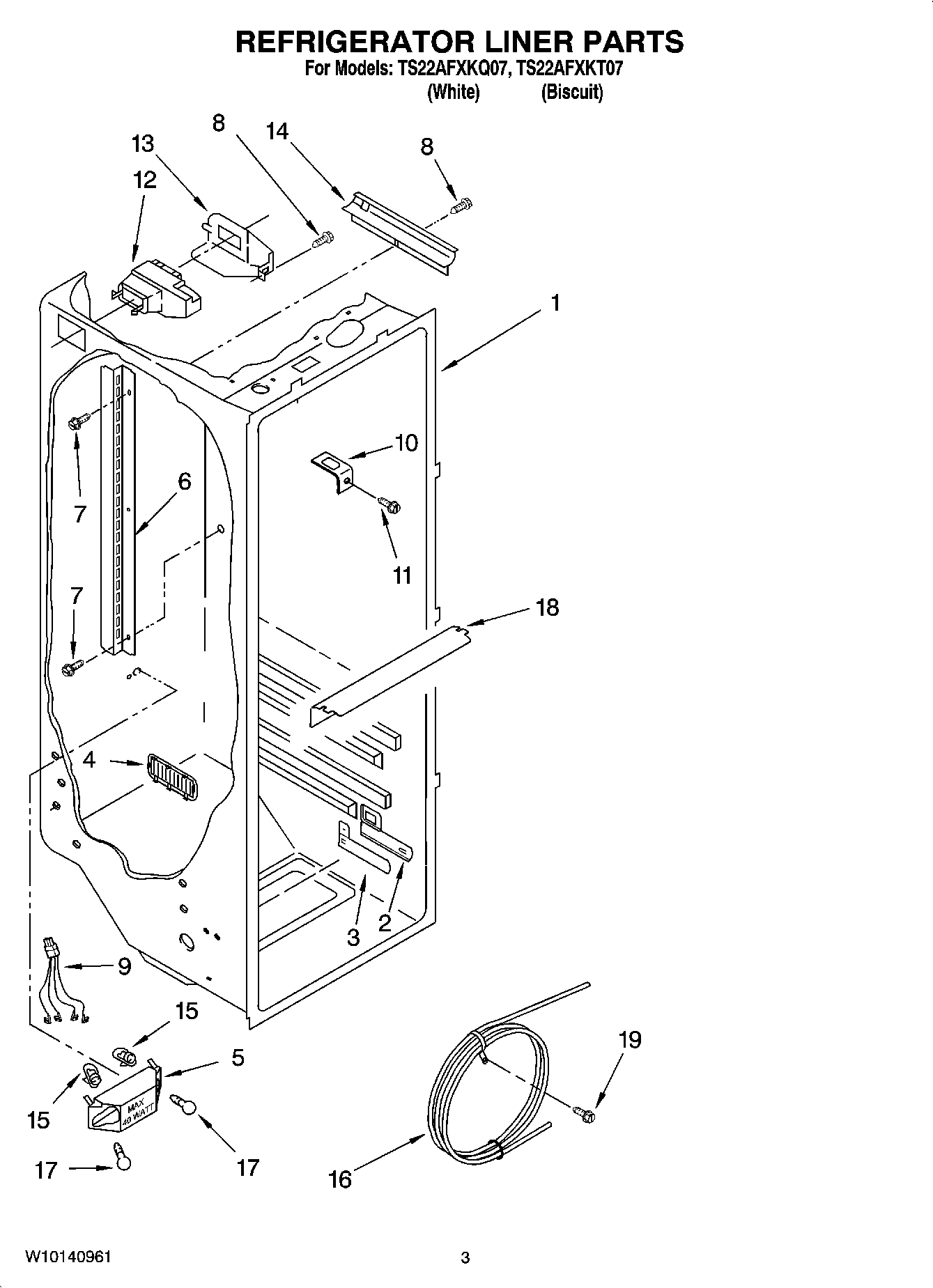

TS22AFXKT07 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
6Shelf Ladder
7WP489478 Whirlpool Refrigerator Screw
8W10759522 Whirlpool Screw
92311637 Whirlpool Refrigerator Wire Harness
10WP2256085 Whirlpool Refrigerator Retainer
11WP488488 Whirlpool Refrigerator Screw
12WPW10151374 Whirlpool Refrigerator Diffuser
132152019 Whirlpool Refrigerator Cover
142150331 Whirlpool Refrigerator Wire Cover
154387478 Whirlpool Refrigerator Light Socket
16WP2256126 Whirlpool Refrigerator Reservoir
17RANGE ONLY 40W 120V APPL BULB
18Light Lens
19Screw (2)
