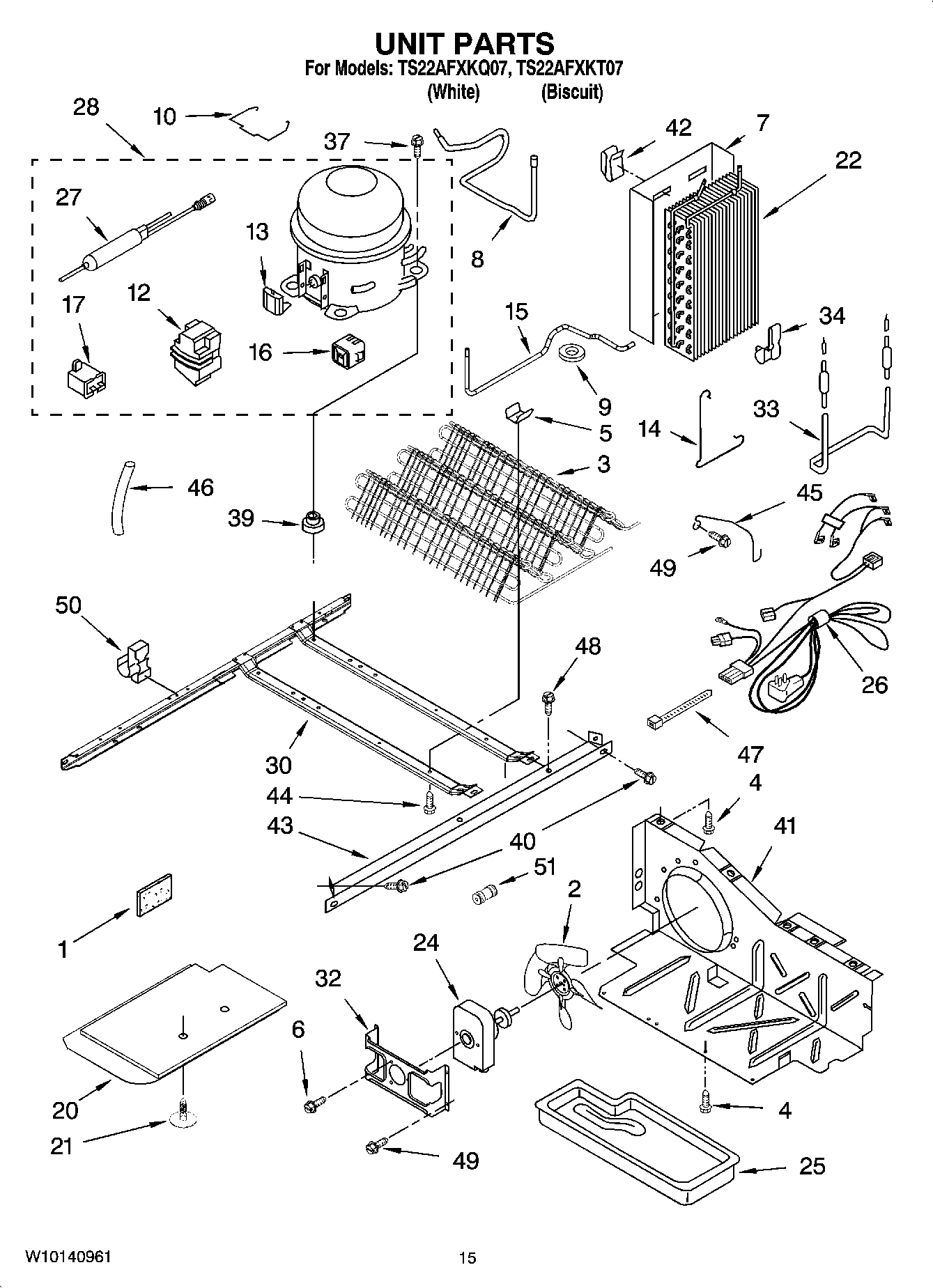

TS22AFXKT07 10 – UNIT PARTS

TS22AFXKT07 10 – UNIT PARTS

Written by

in

TS22AFXKT07 10 – UNIT PARTS

Products

PositionProduct
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP8533993 Whirlpool Refrigerator Screw
72217195 Whirlpool Refrigerator Shield
82205764 Whirlpool Refrigerator Tube
9Bushing, Compressor
102223313 Whirlpool Clip
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Clamp
152261599 Whirlpool Refrigerator Tube
16W10896198 Whirlpool Refrigerator Start Device
17WP4387764 Whirlpool Run Capacitor
17WP65889-4 Whirlpool Refrigerator Capacitor
20W11115203 Whirlpool Control Panel
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27WPW10143759 Whirlpool Dryer Filter
28W10139462 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Mounting Rail
44W11544659 Whirlpool Refrigerator Screw
45Guard, Fan
46SLEEVE
47WPW10339879 Whirlpool Wire Tie
48WP489427 Whirlpool Refrigerator Screw
49WP489478 Whirlpool Refrigerator Screw
50Clip, Wire & Tube
51Following Parts Not Illustrated and Optional Parts Not Included
51VALVE, ACCESS (5/8“)
51876764 Whirlpool Refrigerator Primary Valve
51WP4373559 Whirlpool Fitting
51978026 Whirlpool Refrigerator Primary Valve
51978027 Whirlpool Refrigerator Primary Valve
51978030 Whirlpool Refrigerator Valve
51WP978025 Whirlpool Refrigerator Valve
51VALVE, ACCESS (1/2“)
51REFRIGERA
