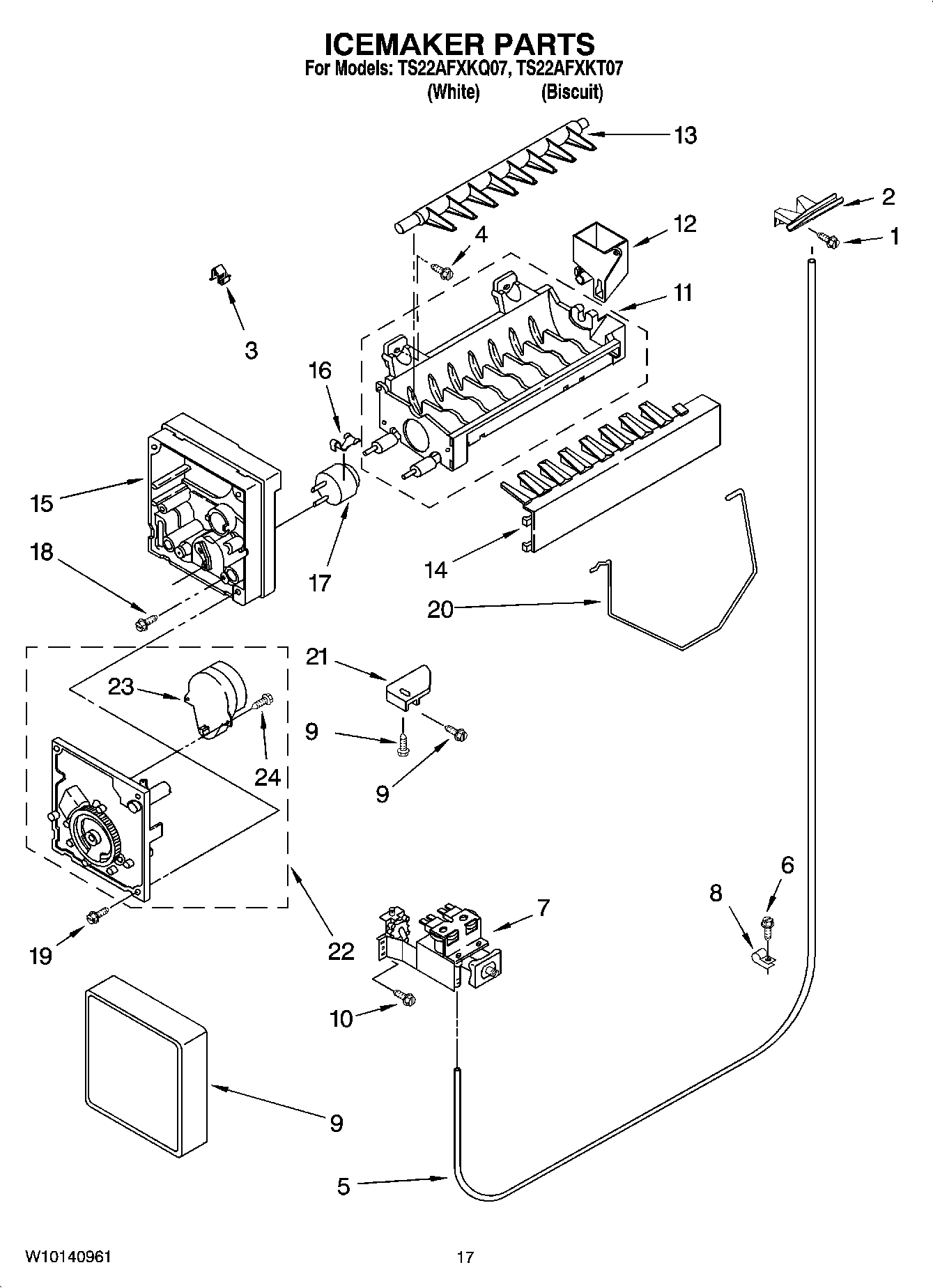

TS22AFXKT07 11 – ICEMAKER PARTS

Products

Position	Product
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	WP488163 Whirlpool Refrigerator Screw
5	W10823511 Whirlpool Refrigerator Water Tube
6	WP489478 Whirlpool Refrigerator Screw
7	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
8	WP488366 Whirlpool Refrigerator Clamp
9	WPW10289690 Whirlpool Ice Maker Cover
10	WPW10141625 Whirlpool Refrigerator Screw Assembly
11	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
12	W10122561 Whirlpool Refrigerator Cup Fill
13	WP627843 Whirlpool Refrigerator Ejector Arm
14	WP2182124 Whirlpool Refrigerator Stripper Arm
15	WP2195914 Whirlpool Refrigerator Ice Maker Housing
16	WP2315522 Whirlpool Refrigerator Clip
17	WP627985 Whirlpool Icemaker Cycling Thermostat
18	8533917 Whirlpool Refrigerator Screw
19	WP681249 Whirlpool Screw Assembly
20	W11342242 Whirlpool Refrigerator Ice Level Arm
21	W11500948 Whirlpool Refrigerator Bracket
22	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
23	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
24	489136 Whirlpool Refrigerator Screw
100	WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
