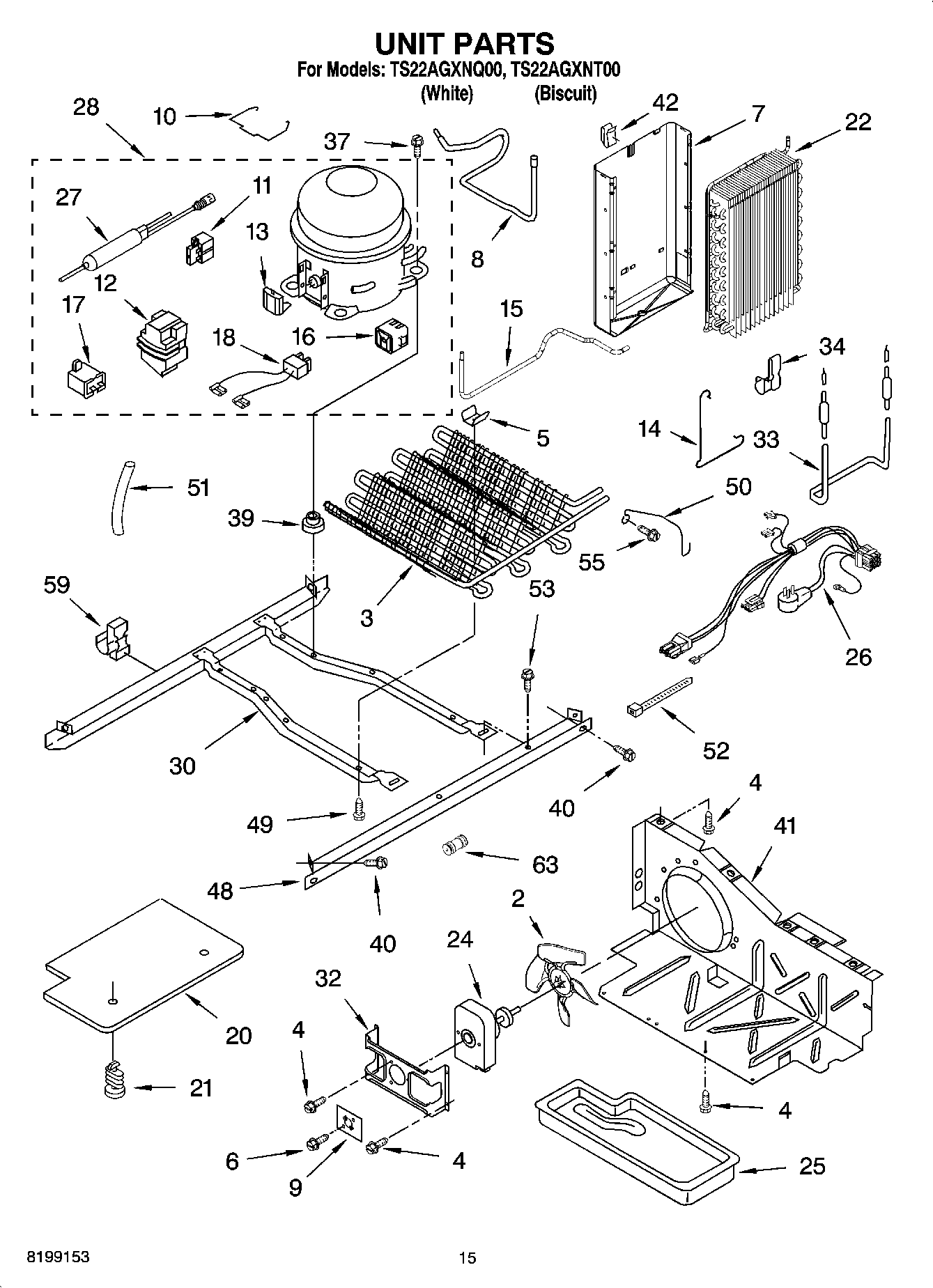

TS22AGXNQ00 10 – UNIT PARTS
Written by
in
TS22AGXNQ00 10 – UNIT PARTS
Products
Position
Product
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
8281160 Whirlpool Screw
7
Heat Shield
8
2220642 Whirlpool Refrigerator Tube
9
Insert, Bracket
10
2255009 Whirlpool Retainer
11
W10920279 Whirlpool Refrigerator Start Relay
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2187145 Whirlpool Refrigerator Overload
14
Clamp
15
2261599 Whirlpool Refrigerator Tube
16
WP2188831 Whirlpool Refrigerator Start Device
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
17
WP65889-4 Whirlpool Refrigerator Capacitor
18
WP2172890 Whirlpool Refrigerator Wire
20
Unit Cover, Bottom
21
489396 Whirlpool Refrigerator Clip
22
WP2188822 Whirlpool Refrigerator Evaporator
24
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
WPW10309395 Whirlpool Refrigerator Wire Harness
27
W10843121 Whirlpool Refrigerator Tube
28
W10309990 Whirlpool Refrigerator Compressor
30
2304903 Whirlpool Refrigerator Frame
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323197 Whirlpool Refrigerator Heater
34
W11623163 Whirlpool Refrigerator Clip
39
876811 Whirlpool Grommet
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
48
Unit Mounting Rail
49
W11544659 Whirlpool Refrigerator Screw
50
Guard, Fan
51
SLEEVE
52
WPW10339879 Whirlpool Wire Tie
53
WP489427 Whirlpool Refrigerator Screw
55
WP489478 Whirlpool Refrigerator Screw
59
Clip, Wire & Tube
63
FOLLOWING PARTS NOT ILLUSTRATED
63
and Optional Parts Not Includ
63
VALVE, ACCESS (5/8“)
63
978026 Whirlpool Refrigerator Primary Valve
63
978027 Whirlpool Refrigerator Primary Valve
63
978030 Whirlpool Refrigerator Valve
63
WP978025 Whirlpool Refrigerator Valve
63
VALVE, ACCESS (1/2“)
63
876764 Whirlpool Refrigerator Primary Valve
63
WP4373559 Whirlpool Fitting
63
WPL ARI131851A
←
