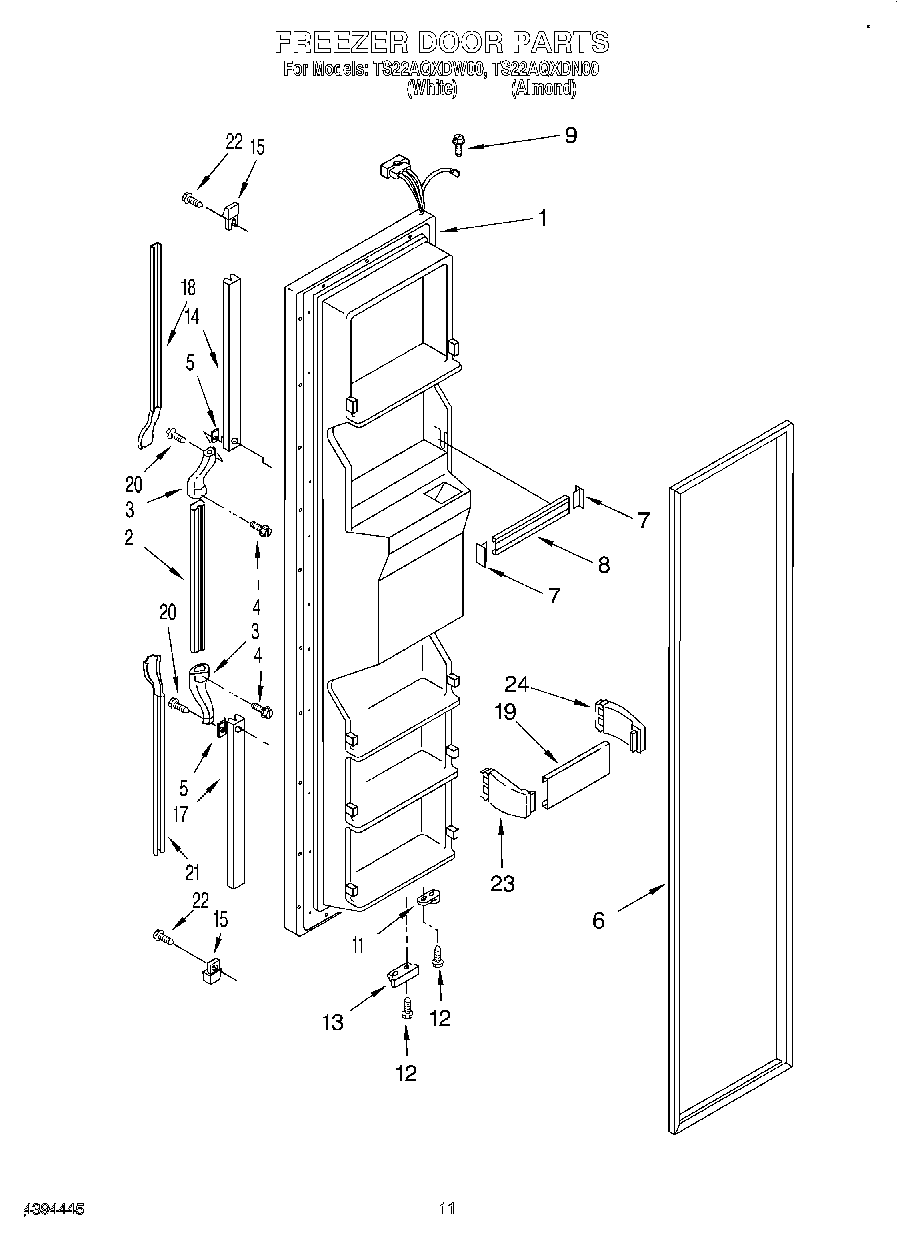

TS22AQXDN00 07 – FREEZER DOOR

TS22AQXDN00 07 – FREEZER DOOR

Written by

in

TS22AQXDN00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts))
1Freezer Door (White)
2Handle, Center (Almond)
2Handle, Center (White)
3End Cap, Center Handle
4Screw
5Shim
62159072 Whirlpool Refrigerator FIP Gasket
7WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
8WPW10307490 Whirlpool Door Trim Assembly
9WP488234 Whirlpool Air Conditioner Screw
114318165 Whirlpool Refrigerator Door Closure Cam Kit
12WP489483 Whirlpool Screw
13Bracket, Door Stop
14Retainer, Insert
15End Cap (2)
17Retainer, Insert (Bottom)
18Insert, Handle
18Insert, Handle (Almond)
19Trim, Shelf (4)
20WP489463 Whirlpool Refrigerator Screw
21Insert, Handle (White)
21Insert, Handle (Almond)
22Screw
23WP2195917K Whirlpool Refrigerator Endcap
24ENDCAP
