TS22AQXDN10 06 – REFRIGERATOR DOOR
Written by
in

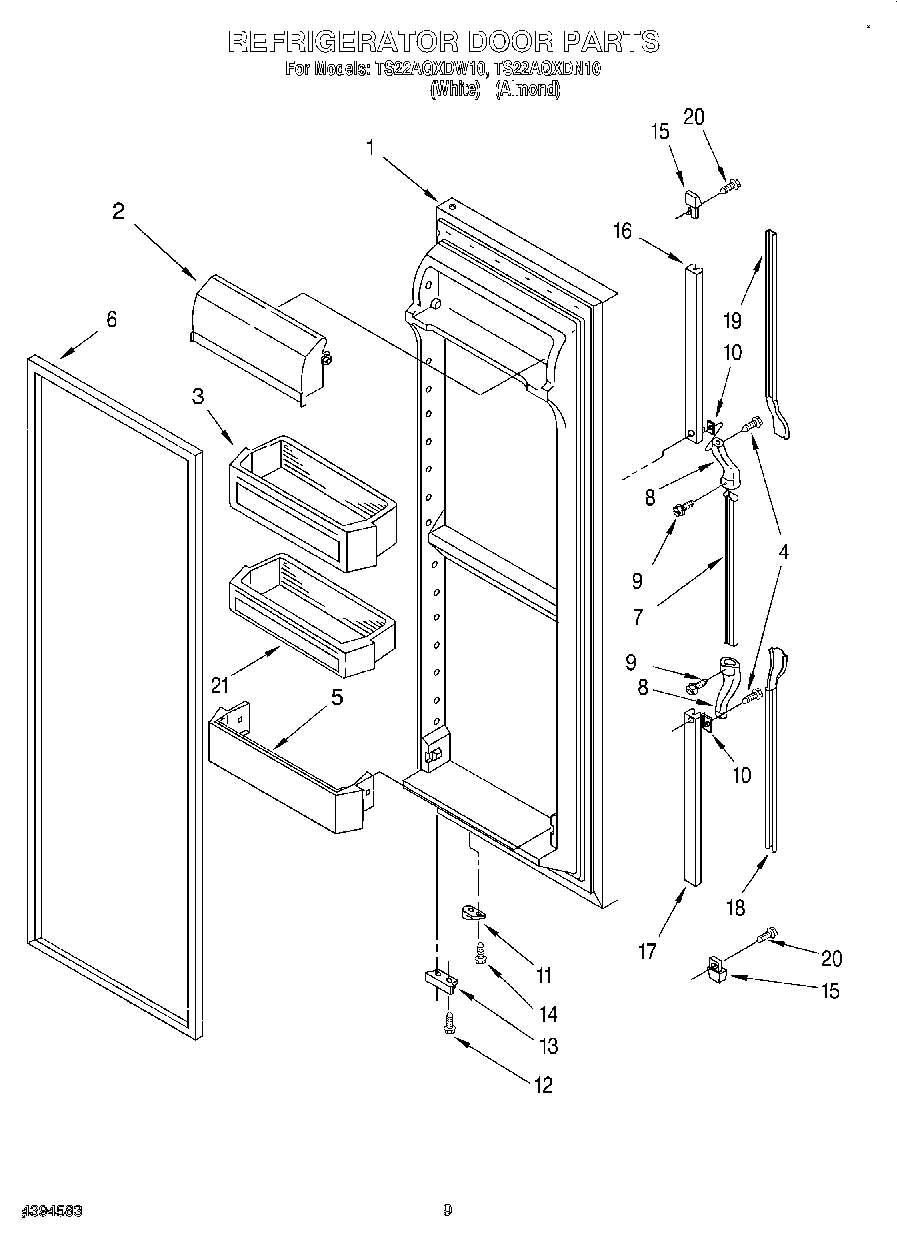

TS22AQXDN10 06 – REFRIGERATOR DOOR
Products
Position
Product
1
Refrigerator Door (Includes Item 6) (White)
1
Refrigerator Door (Includes Item 6) (Almond)
2
WP2256101 Whirlpool Dairy Door
3
Shelf Bin (2)
4
WP489463 Whirlpool Refrigerator Screw
5
WP2177962K Whirlpool Refrigerator Door Trim
6
2159073 Whirlpool Refrigerator Door Gasket
7
Handle, Center (White)
7
Handle, Center (Almond)
8
End Cap, Center Handle
9
Screw
10
Shim
11
4318165 Whirlpool Refrigerator Door Closure Cam Kit
12
WP489483 Whirlpool Screw
13
Bracket, Door Stop
14
WP3400012 Whirlpool Refrigerator Screw
15
End Cap (2)
16
Insert Retainer (Top)
17
Retainer, Bottom
18
Insert, Bottom (White)
18
Insert, Bottom (Almond)
19
Insert, Top (Almond)
19
Insert, Top (White)
20
Screw
21
Shelf Bin
←
