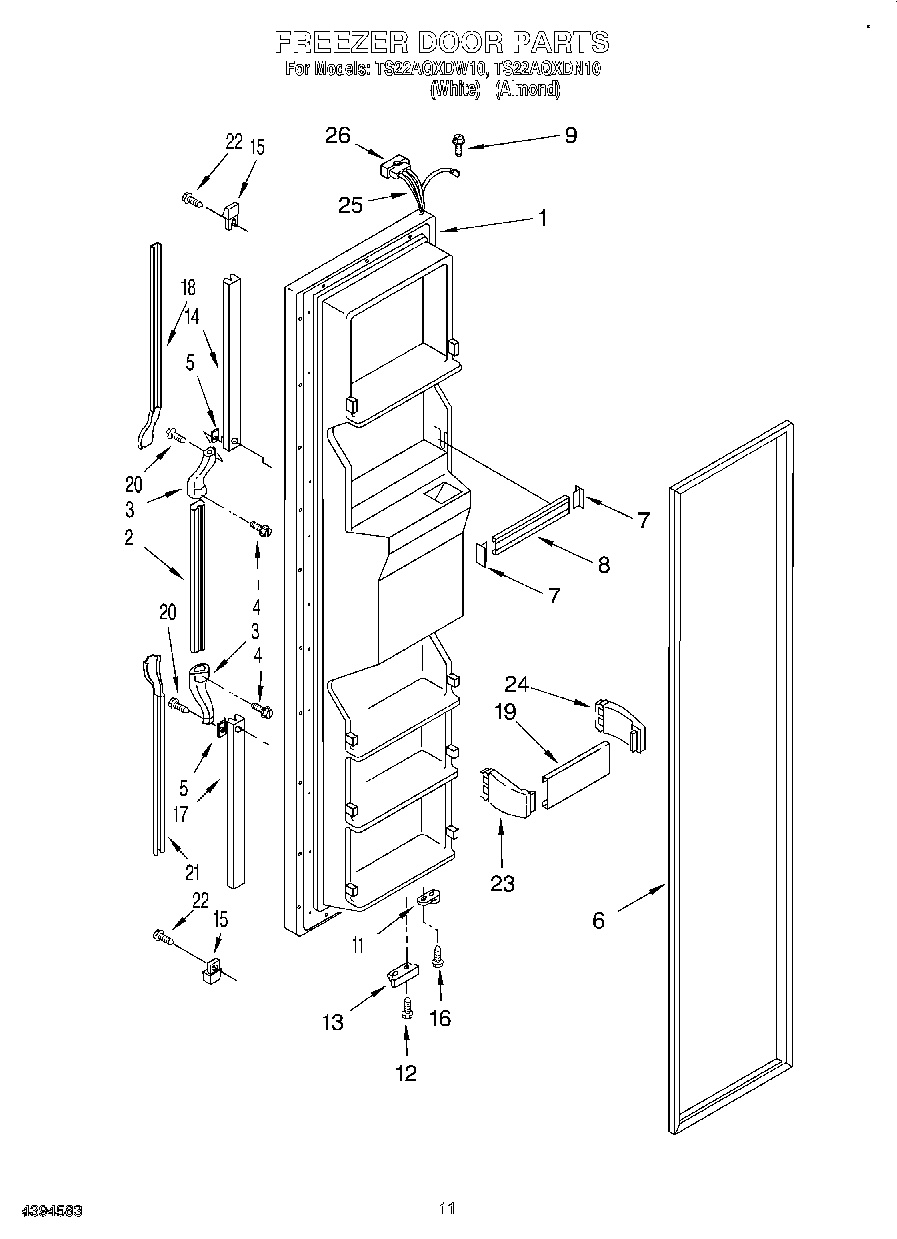

TS22AQXDN10 07 – FREEZER DOOR
Written by
in
TS22AQXDN10 07 – FREEZER DOOR
Products
Position
Product
1
Freezer Door (White)
1
Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts))
2
Handle, Center (Almond)
2
Handle, Center (White)
3
End Cap, Center Handle
4
Screw
5
Shim
6
2159072 Whirlpool Refrigerator FIP Gasket
7
WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
8
WPW10307490 Whirlpool Door Trim Assembly
9
WP488234 Whirlpool Air Conditioner Screw
11
4318165 Whirlpool Refrigerator Door Closure Cam Kit
12
WP489483 Whirlpool Screw
13
Bracket, Door Stop
14
Insert Retainer (Top)
15
End Cap (2)
16
WP3400012 Whirlpool Refrigerator Screw
17
Retainer, Bottom
18
Insert, Top (Almond)
18
Insert, Top (White)
19
Trim, Shelf (4)
20
WP489463 Whirlpool Refrigerator Screw
21
Insert, Bottom (White)
21
Insert, Bottom (Almond)
22
Screw
23
WP2195917K Whirlpool Refrigerator Endcap
24
ENDCAP
25
Wiring Harness
26
WP2154473 Whirlpool Refrigerator Connector
←
