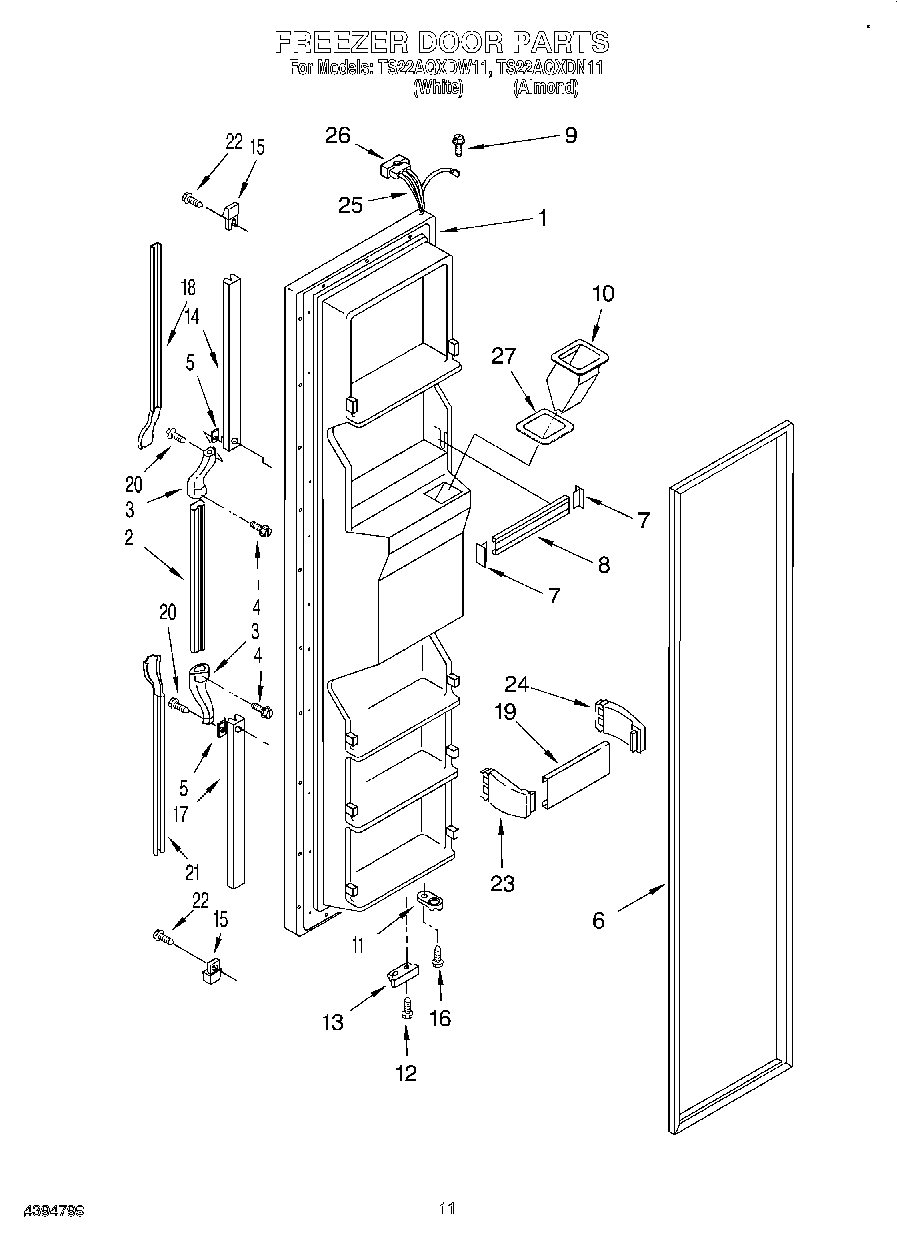

TS22AQXDW11 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (White)
1	Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts))
2	Handle, Center (White)
2	Handle, Center (Almond)
3	End Cap, Center Handle
4	Screw
5	Shim
6	2159072 Whirlpool Refrigerator FIP Gasket
7	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
8	WPW10307490 Whirlpool Door Trim Assembly
9	WP488234 Whirlpool Air Conditioner Screw
10	Chute, Ice
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Chrome)
14	Insert Retainer (Top)
15	End Cap (2)
16	WP3400012 Whirlpool Refrigerator Screw
17	Retainer, Bottom
18	Insert, Top (Almond)
18	Insert, Top (White)
19	Door, Shelf (4)
20	WP489463 Whirlpool Refrigerator Screw
21	Insert, Bottom (Almond)
21	Insert, Bottom (White)
22	Screw
23	WP2195917K Whirlpool Refrigerator Endcap
24	ENDCAP
25	Wire Harness
26	WP2154473 Whirlpool Refrigerator Connector
27	Seal, Housing
