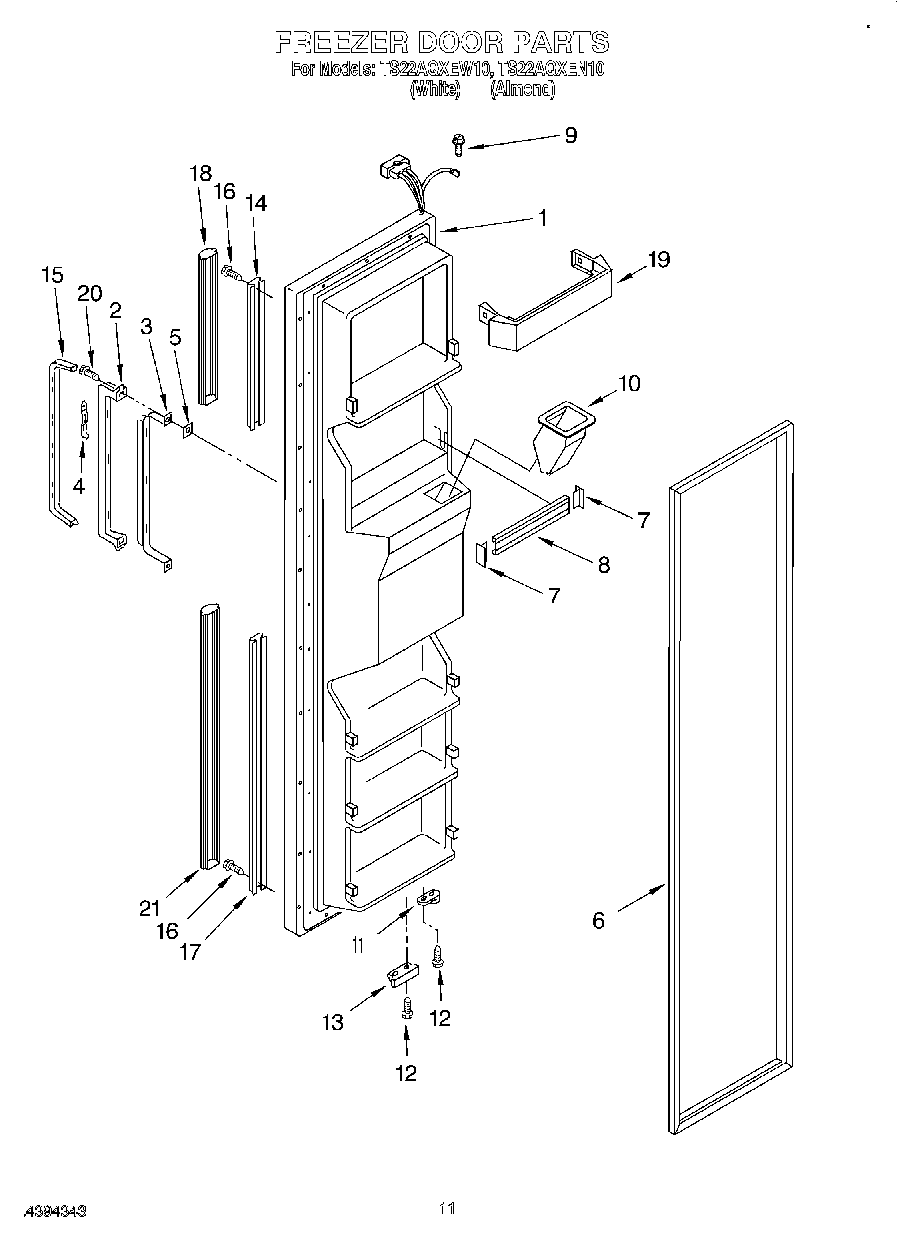

TS22AQXEN10 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (White)
2	Handle, Center (Almond)
2	Handle, Center
3	Reinforcement, Handle
4	Clip, Handle
5	Shim
6	2159072 Whirlpool Refrigerator FIP Gasket
7	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
8	WPW10307490 Whirlpool Door Trim Assembly
9	WP488234 Whirlpool Air Conditioner Screw
10	Chute, Ice
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop
14	Retainer, Top
15	Insert, Handle
16	WP489478 Whirlpool Refrigerator Screw
17	Retainer (Bottom)
18	Extension, Top
18	Extension, Top (Almond)
19	Door, Shelf (4)
21	Extension, Bottom
21	Extension, Bottom (Almond)
