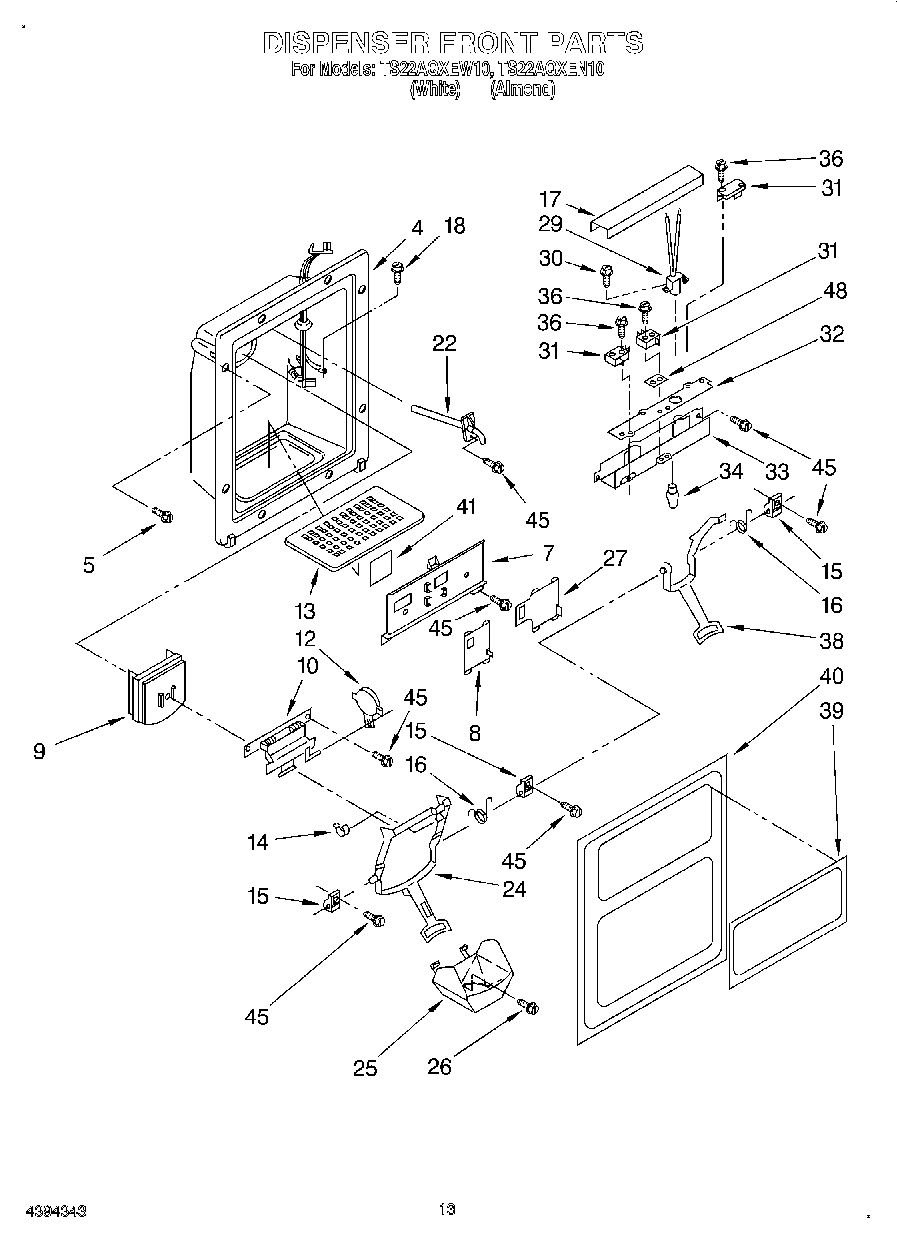

TS22AQXEN10 09 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser
24	Lever, Ice Dispenser (Almond)
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch (Almond)
29	Lamp Holder
30	Screw, 4-40 x 1
31	WP2162361 Whirlpool Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
36	Screw,
38	Lever, Water Dispenser (White)
38	Lever, Water Dispenser (Almond)
39	Plaque, Front Cover
39	Plaque, Front Cover (Almond)
40	Front Cover, Housing (Includes Item 39)
40	Front Cover, Housing (Almond (Includes Item 39))
41	Heat Shield, Frame
45	WP3400906 Whirlpool Refrigerator Screw
48	Spacer, Switch (2)
