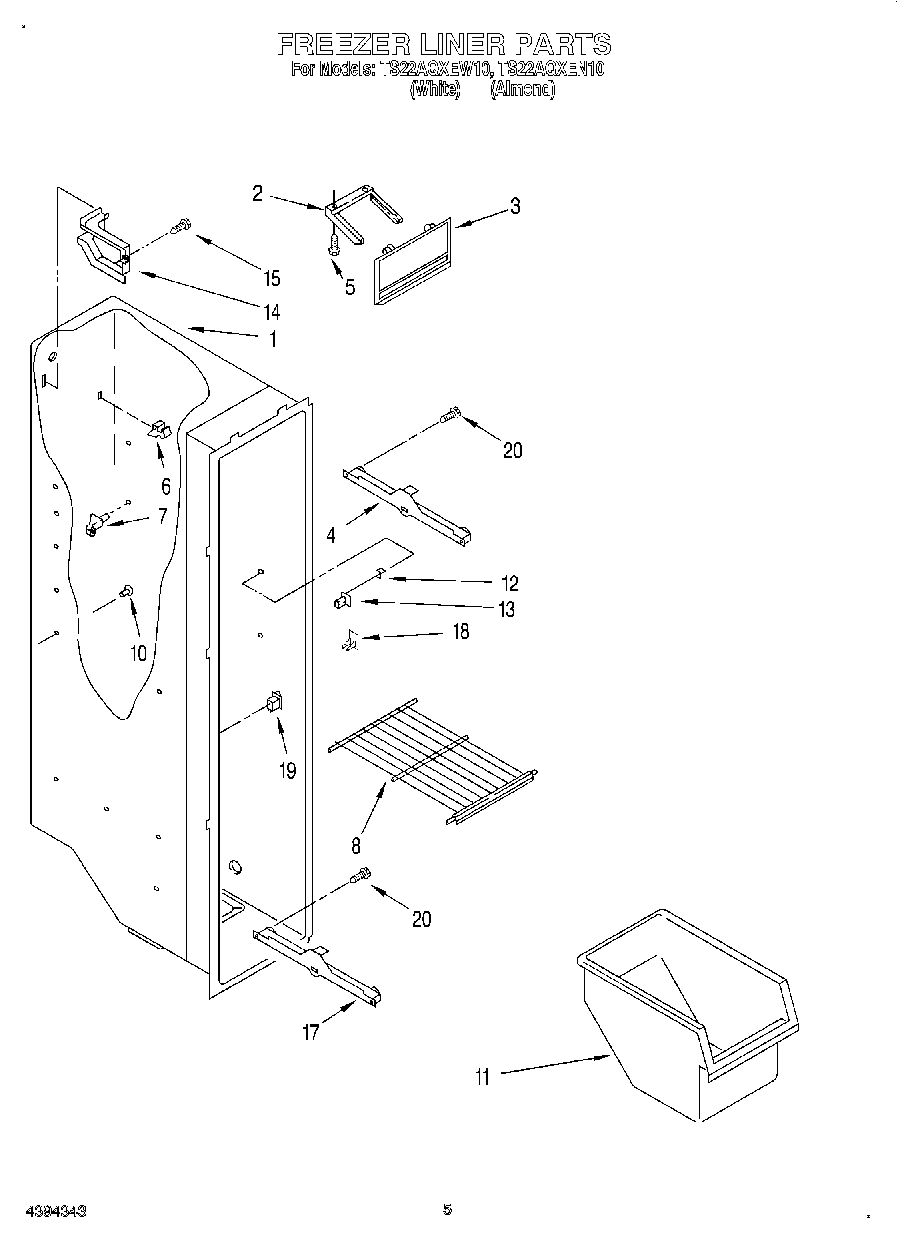

TS22AQXEW10 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	W10845585 Whirlpool Refrigerator Track
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
8	Shelf (2)
10	Grommet
11	Bin, Freezer
12	Stud, Support
13	Stud, Front R.S.
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Left Side)
17	W10845583 Whirlpool Refrigerator Track
18	Stud, Rear R.S.
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
