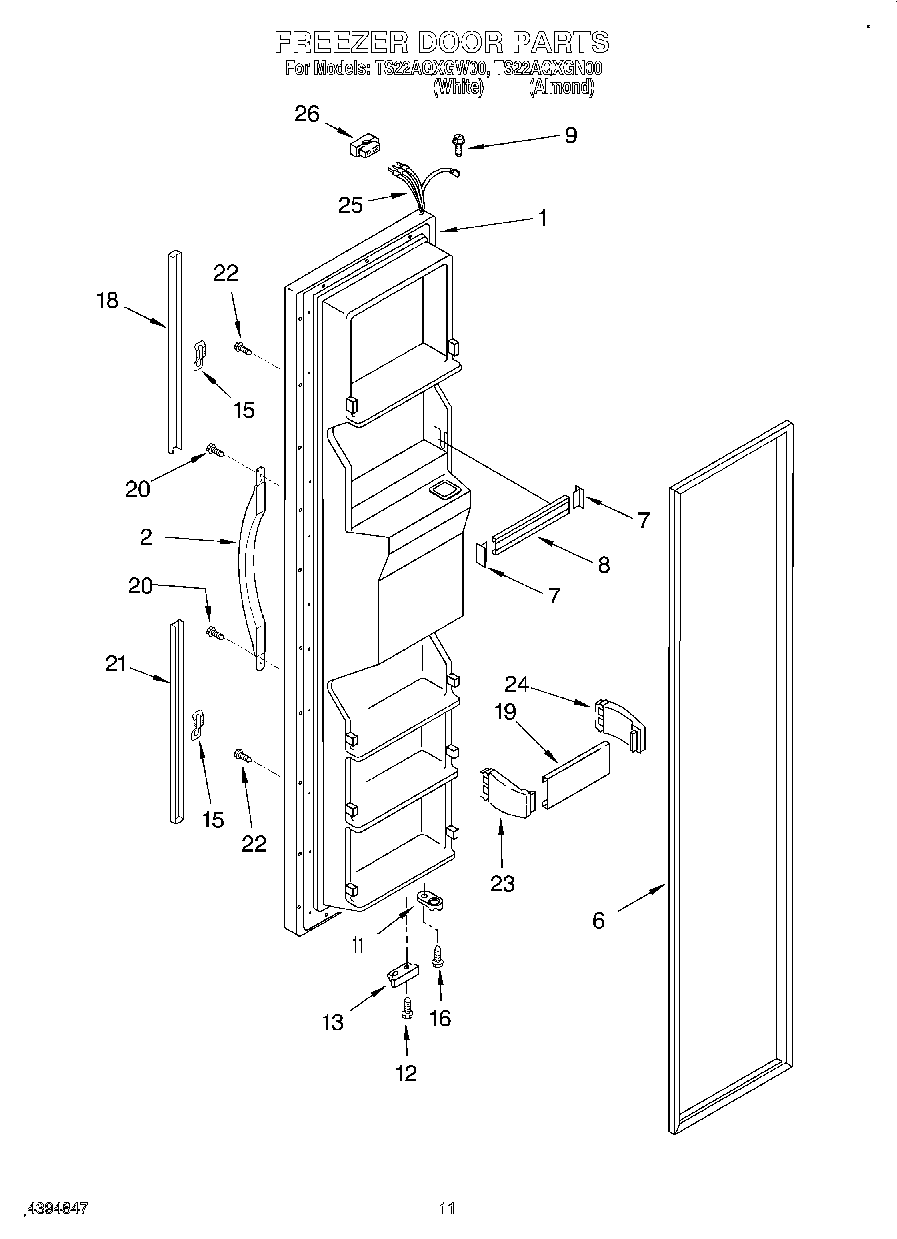

TS22AQXGN00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts))
1	Freezer Door (White (Includes Item No.6 And Dispenser Front Parts))
2	Handle, Center (White)
2	Handle, Center (Almond)
6	2159072 Whirlpool Refrigerator FIP Gasket
7	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
8	WPW10307490 Whirlpool Door Trim Assembly
9	WP489128 Whirlpool Refrigerator Screw
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Chrome)
15	WP2195327 Whirlpool Refrigerator Clip
16	WP3400012 Whirlpool Refrigerator Screw
18	Extension, Top (White)
18	Extension, Top (Almond)
19	Door, Shelf (4)
20	WP489491 Whirlpool Refrigerator Screw
21	Extension, Bottom (Almond)
21	Extension, Bottom (White)
22	WP3400852 Whirlpool Refrigerator Screw
23	WP2195917K Whirlpool Refrigerator Endcap
24	ENDCAP
25	Wire Harness
26	WP2154473 Whirlpool Refrigerator Connector
