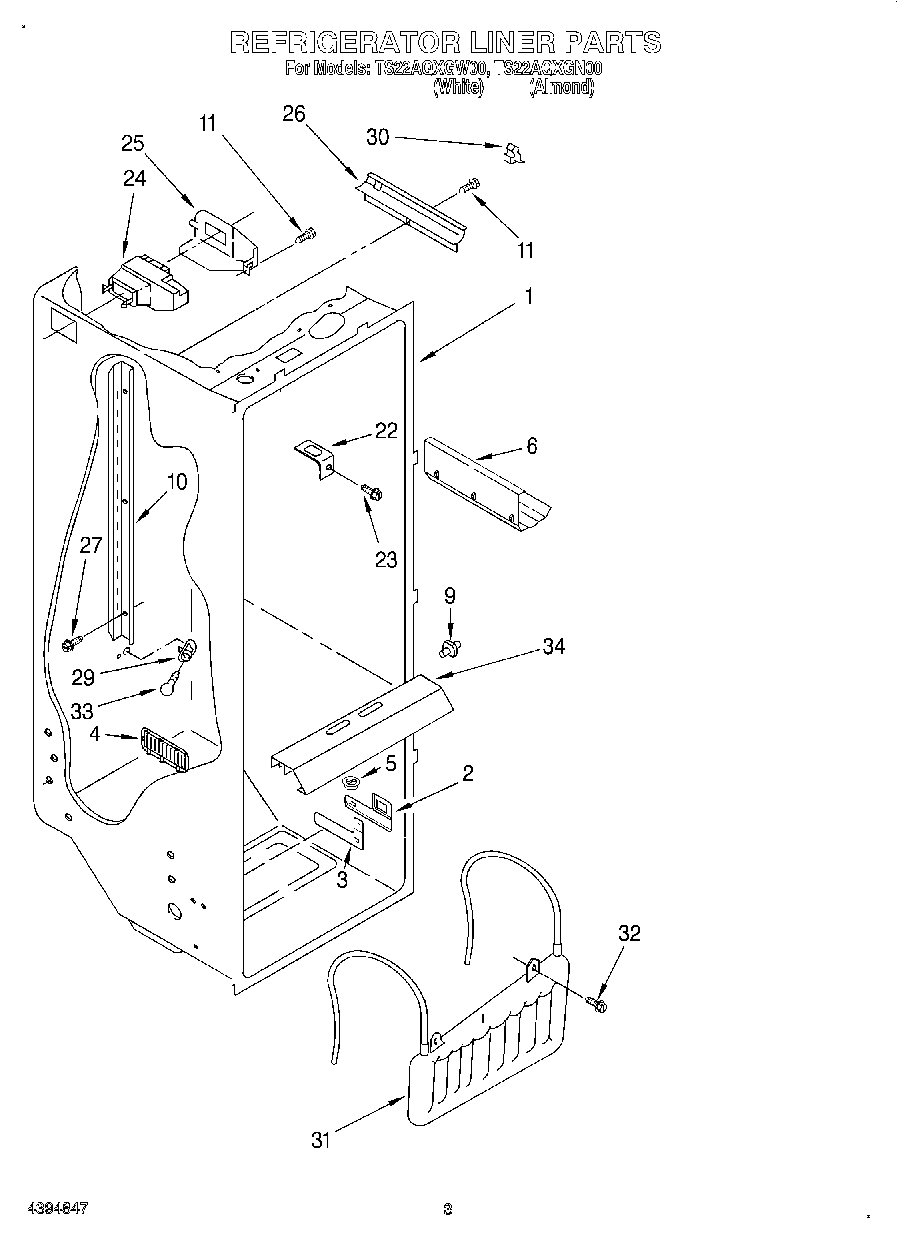

TS22AQXGW00 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	2171846 Whirlpool Refrigerator Release Valve
6	W10777924 Whirlpool Refrigerator Wine Rack
9	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
10	Ladder, Shelf
11	W10759522 Whirlpool Screw
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	WP488729 Whirlpool Refrigerator Door Screw
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
32	Screw (2)
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
