TS22AQXGW00 04 – FREEZER LINER

TS22AQXGW00 04 – FREEZER LINER

Written by

in

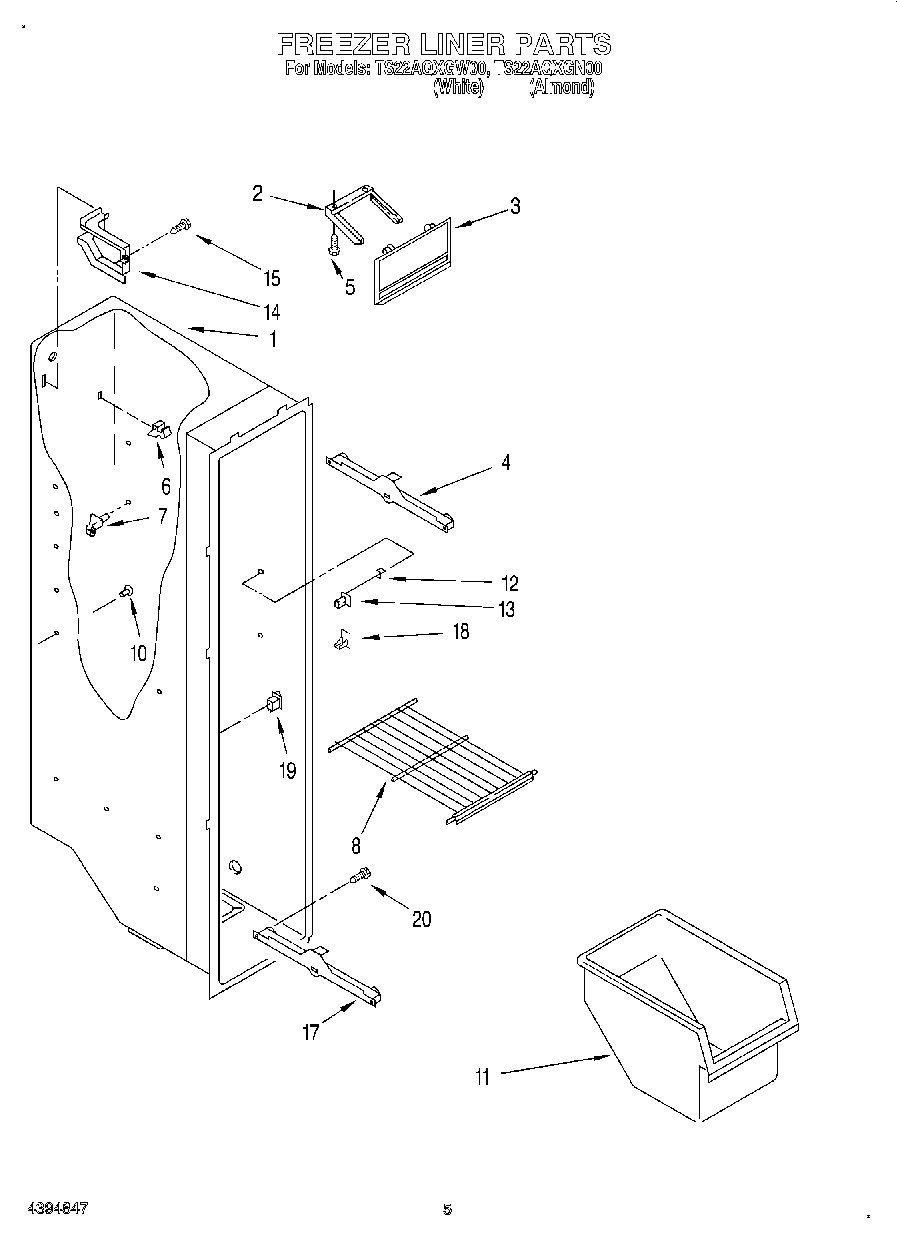

TS22AQXGW00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4W10845585 Whirlpool Refrigerator Track
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
8Shelf (2)
10Grommet
11Bin, Freezer
12Stud, Support
13Stud, Front R.S.
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side)
17W10845583 Whirlpool Refrigerator Track
18Stud, Rear R.S.
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
